AMS Lite Small Spool Securing Cap by dandcmckay

dandcmckay

3D Printer>3D Printer Accessories

GIF

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

0.2mm layer, 6 walls, 25% infill

Designer

20 min

1 plate

4.7(21)

A1 mini, 0.2mm layer, 4 walls, 50% infill

22 min

1 plate

4.8(10)

Open in Bambu Studio

Boost

109

226

206

Released

Description

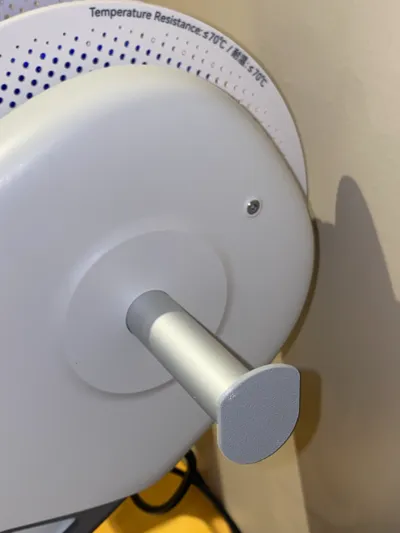

Many small spools will not fit on the AMS Rotary Spool Holders; so I created a cap that clips into the end of the yellow posts (post numbers 2 and 4, with the hex shaped interface) that stops the spool from falling off. Fits spool ID as small as 34 mm.

I see someone made a design for posts 1 and 3 here AMS Lite universal small spool securing cap by Ludo - MakerWorld.
Let me know how theirs fits.

UPDATE: New more flexible design uploaded here https://makerworld.com/en/models/593685#profileId-515507

If you have issues with the clips breaking, try this one. The clipping force is not as strong, but it fits great and will keep those smaller spools on.
