This model is design for MakerWorld light contest (2/5). Complete free version is only available on here Makerworld.

Many people have contacted me said they willing to pay for the model. Other platform product manager reach and out said I could use their platform and selling this design for some money, but I have decided to keep it here for free for now. So there will be more people could enjoying it :) So show me your finshed print, I would like to see it.

Anywhere else you see this model upload is Unauthorized (please notify me and report them), beside my own account (SavageLau).

If you would like purchase LED light needed for this design and filament from Bambu Lab Offical website:

Please purchase the LED Lamp Kit from “Bill of Materials” below: So I can get some commission to support my future work!

Filaments that I use for this project: (Bambu Lab Offical website:)

https://shrsl.com/4h4ns

Update:

2/2/2024. A new profile was made for a1mini. Increased infill/walls on base and body part.

Model main body have been reduced in size inorder to meet the build plate size for a1mini with muti-color prints.

@Sascha2202 feedback it is a bit hard to keep banlance. Weight increased on printing profile by adding more infill and walls. Weight for that part from 160g to 202g, lowered center of gravity. Consider head is around 40g + led weight, it should do well now.

2/1/2024. Joints redesigned.

Improved joints firction load, strength, tolerancing.

New turning angle sets around 13.5 degrees max for each joints.

“Head” part fit and finish improving.

Revisions and Tests today:

Before you print(Important!):

Run the joint test print first with the filament you are going to use for joints and body, before you doing the full print! This is important. Depend on filaments you use for the joint parts, there will be sinkage rate difference, and firction load on joint will be different.

I put very tight tolerancing on design, but it may not work as intended when you printing with your filaments, so run the test and confirm joints is very tight to each other. Other wise You will not get the desired result.

Joints with other parts are standard size. There is one “Tight” profile for joints.

There are two types of joint, regular and with wire clip one. You will need to print total of 12 or above (maybe less than 15) to get good proportion.

Joints designed best work with 4 wall layers, and 10% to 20% infill, adding more infill will not improve the strength, will only leading part failure during assembly.

Hard ware:

This design require Lamp LED Kit 001 from Bambu Lab. All other parts are printable.

Post work:

Removing brims from all parts, when you remove brim from joints part, confirm it is fully removed.

Assembly:

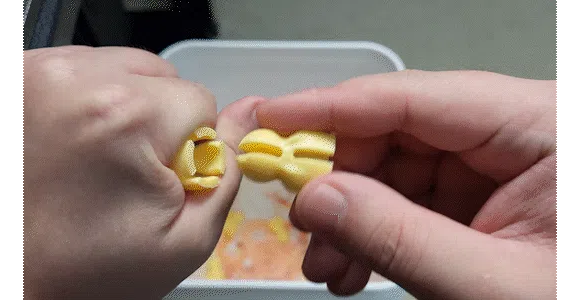

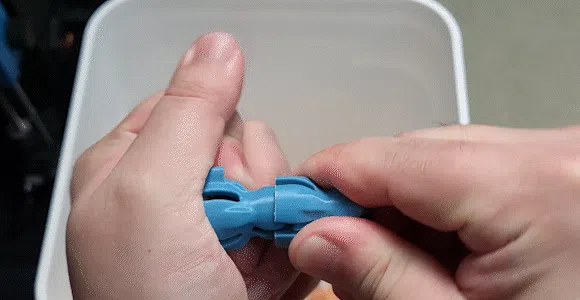

Refer these gif image. Joints is a bit hard to push in, refer how I do it, holding the bottom part with you fingure, it will reduce the change of failure.

Joints:

Fully assembly:

Design:

Lamp kit is 60mm dia, 8mm thickness. based on that dims and make rough draft to evaluate the overall size.

Working on some parts, and integrate them in the end.

I started with wanting ball joint on the head, so it will able to turn angles. End up why not to have more ball joints on the body.

Ball joints is pain in the axx to work with. I want it to have a lot of friction load in normal condition. so the outter shell shall have very small tolerance to the ball or even smaller. Ended spending a lot of time try in truth to testing out different tolerances and make design revisions.

Still not perfect, but it work for this application. You gain a lot of DOF, but it is a bit brittle, depends on your materials.

Revisions and tests:

Bill of Materials

Maker’s Supply Kits and Parts

Official Certified

LED Lamp Kit-MH001

MH001

13.00 USD

× 1

Buy Now

Download BOM

Comment & Rating (1240)

@zhongjingkang

my modified version: 1. add lithium battery power support with type-c recharge 2. adjustable brightness 3. touch switch 4. hidden wire 5. strong bright LED chips

@zhongjingkang

the joints have added with frictional ring, to enhance fixed the head

@Superboosted

Replying to @zhongjingkang :

Do the frictional ring help a lot? are you sharing the stl for them?

@tfridley

I love some of these changes. I would encourage you to work with the original designer to integrate them into the original so we can all enjoy them. A parts list for your electronics would also be appreciated.

@gaguarnieri

Hello guys, I am sending you photos of my version with a reinforced modified neck to prevent the head from falling from this beautiful lamp. It is my humble contribution to the creation of SavageLau.

@troutyoghurt1

Can I have the model for this please?

@jappi247

Looking good, can you upload the files as remix or something?

@TheJGray

Boosted

Do you have this file available? Love this model, but something to make a stiffer neck would be amazing!

@iamkyle16

mines a work in progress 😌. my bellsprout is a little limp.

@mrehmus66

Mine is the same. I'll have to try something other than Bambu's brown metal PLA.

@FinLuPe

This is my problem too but I have no PETG in brown color. The print with PLA brings me the result you are showing in your picture.

@birchybaby

Boosted

That is incredible 🤣

@gaguarnieri

Good morning guys, I share a photo of the redesign work that I am doing to the joint of the lamp head, it is assembled with M3 screws and nuts, it should solve the problem of the head that falls and work better in theory, and I increased the diameter of the base a little more to give it more stability when the head is facing forward. When I have a ready impression, I will send you the finished photo. My humble contribution to this beautiful SavageLau design

@julien_s

would you mind sharing the files?

(Edited)

@TheJGray

Boosted

@gaguarnieri any chance you can share the files for this? I tried printing this as a reading lamp for my niece, but the default neck being so limp doesn't really let it function as such. Thanks!

@gaguarnieri

Replying to @TheJGray :

@thejgray Hello, I just tried to upload my files with the neck modifications as a remix but the license of the original design does not allow me, it would be a question that @SavageLau gives me permission to be able to do it without violating any makerworld policy or disrespecting @SavageLau. Let's ask for your authorization if you agree and allow the remix and upload the modifications. Greetings
