Updated the front baffle. Increased stability. Makes it easy for beginners to complete the print.

Designer

21.2 h

4 plates

5.0(1)

p1s, the upper part of the grille square frame is changed to a slope and support is canceled, 0.2mm layer, 2 walls, 15% infill

17.8 h

4 plates

Open in Bambu Studio

Boost

330

Released

Description

Content has been automatically translated.

Show original

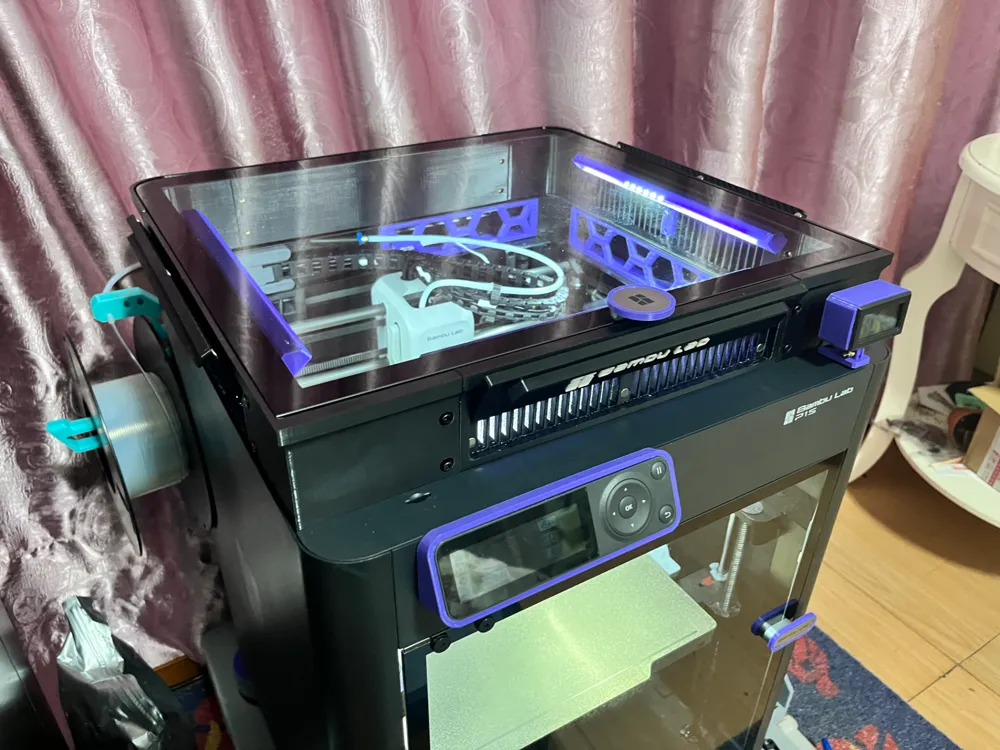

Top cover heat dissipation riser compatible with Bambu P1S X1 Printable 3 lamp holders. Uses 16 M3 * 5mm * 4mm heat-shrink nuts and 16 M3 * 10mm screws. Uses 36 6 * 3mm magnets. One 12v LED 1m boost board is connected to the original lamp board interface.

Comment & Rating (19)

@yjboy88

There seems to be a problem with the model file. Could you please double-check it? Thank you. If you haven't printed yet, please hold off as it would be a waste of materials.

The designer has replied

Show original

@user_4122600692

There is no problem with the model, you installed it upside down at the corner, which caused the misalignment. Just switch it and it will be fine.

Show original

@yjboy88

Replying to @user_4122600692 :

It's assembled, but I can't figure out why this last piece has a gap. I still really like this model, especially the three downward-facing lamp bases, they're great. However, the lamp base size is a bit of a dilemma, it doesn't quite match up with the regular LED strips available on the market.

Show original

@user_688898743

Hey, the front panel of the model is not right, it should be different from the side panel, the model has three identical ones

The designer has replied

Show original

@user_4122600692

You installed it backwards

Show original

@yjboy88

I encountered the same issue, are you okay now?

Show original

@yjboy88

Size error? Or is it just me who has a problem, everyone else is correct? I didn't change anything, I used the host's model directly to print.

Show original

@RarePlantsGerma

Exactly what I was looking for. But my question is, where did you connect the LED strips? I don't see a cable anywhere? And what is your P1S on? did you print that too? i need that too.

The designer has replied

@user_4122600692

I am using the original LDE interface and a 12v LED. You will need a CH1.25 cable to connect to the original interface and a step-up board to boost the original 5v to 12v to power the LED. This allows you to control the LED using the Bambu Lab app.

Show original

@user_196444680

Replying to @user_4122600692 :

That transformer is installed in that location

Show original

@fancyage

Replying to @user_4122600692 :

So it's the interface on the board behind the screen?

Show original

@user_101810958

Note! The melt-in nut M3*5*4, 5 is the length, 4 is the outer diameter. Some merchants reverse these two dimensions, making it easy to buy one with a 5 outer diameter. At the same time, the screw is recommended to be M3*15, the M*10 length is a bit weak, and it doesn't feel very solid.

Show original

@user_2059200

How long of an LED strip do I need?

Show original

@JackSparrow

Could you please clarify how to differentiate between the new and old versions of these three configuration files, as one of them mentions using the latest version?

Show original
