Monster truck with suspension toy car Remixed by Vodvarek_Vodvar

Remixed by

Vodvarek_Vodvar

Toys & Games>Other Toys & Games

IP Report

GIF

Print Profile(4)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

0.16mm layer, 4 walls, 20% infill

Designer

3.4 h

1 plate

4.9(16)

Single color,0.2mm layer, 3 walls, 15% infill

Designer

3.2 h

1 plate

4.1(20)

0.2mm layer, 3 walls, 15% infill mini with supports

Designer

4.2 h

1 plate

4.8(4)

0.2mm layer, 3 walls, 15% infill Normal supports

Designer

4.1 h

1 plate

4.3(3)

Open in Bambu Studio

Boost

227

627

443

Released

Description

Easy print, support less, supports are build in model, very easy to remove, print in place, working suspension.

https://youtu.be/MPdxeomm52c

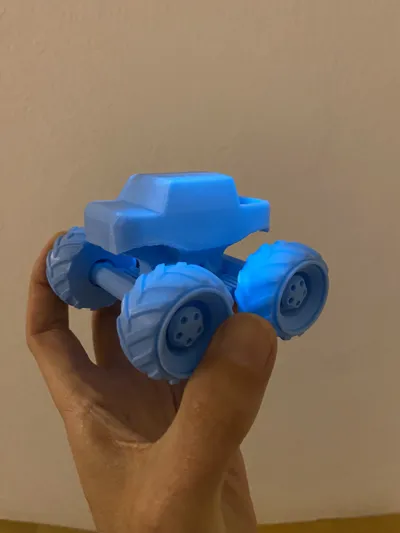

Truck body and suspension prints in one piece. No need for support, supports are built into part. Rim caps friction fit to body, no glue is needed.

The print shown here was done with PLA using standard settings.

For a two-tone wheel ring, 19.8 mm is the appropriate height to swap filament if you are using a plugin to pause it.

Purchase some extra wheel designs and support my hobby

https://www.patreon.com/jakejake/creators

https://material11.com/

Comment & Rating (74)

@simonsgarage

The print was incredibly successful, my son was overjoyed. The quality is superb. I had to glue the orange lids in place.

Show original

@ABC3D

Print Profile

0.16mm layer, 4 walls, 20% infill

Very nice design! It might be helpful to add more support for the bottom of the car, but otherwise, nothing to report. I glued the hubcaps for better hold when my son plays with it.

@PupYouUp

Boosted

nice print and like the suspension. I’m still pretty new to 3d printing and mine fell apart with out supports, so I added and it did this one nicely. added my niece’s name to the back window. I made the tires out of TPU and they came out very nice. thanks for sharing.

The designer has replied

@Vodvarek_Vodvar

Thank you;)

@Kasuwaw

Boosted

Print Profile

0.16mm layer, 4 walls, 20% infill

Prints well. I added tree support and slow down the print speed to minimize overhang.

@Vodvarek_Vodvar

Thank you;)

@Kasuwaw

Boosted

Thanks for sharing. Any new truck designs coming?

The designer has replied

@Vodvarek_Vodvar

Thank you;)

@dtuscher

Boosted

Print Profile

0.16mm layer, 4 walls, 20% infill

printed pretty good over all. good design! might have been my prob but the underside of the wheel wells would benefit from some tree supports to make it a cleaner print. I also did a color switch from the suspension to the body which ended up looking really great and it's super easy to do. The suspension seems sturdy which will be great for a young kid who would play rough with it. Overall great design!

@Vodvarek_Vodvar

Thank you;)

@GoldenChild

Print Profile

Single color,0.2mm layer, 3 walls, 15% infill

solid print. a few mess up here and there, but I think that's an issue on my end. the hub caps don't snap in, so I will have to use super glue or some other substance but over all my God son loves his new monster truck!

(Edited)

@Vodvarek_Vodvar

Nice print thx

@LusisOrdo

Print Profile

0.16mm layer, 4 walls, 20% infill

A truly beautiful print, flawlessly executed

Show original

@rgb_Slotcover

Print Profile

0.16mm layer, 4 walls, 20% infill

absolutly awsome 😍🙂👍🏻

@jhannila

I really like the design and it printed well. I’m new to 3d printing and this was only my second print with A1 mini! Tyres were printed with Bambu Lab PLA matte and the car with Flashforge PLA. I also had to glue the hubcaps to make them stay in place but that’s not a big deal.

(Edited)
