Description

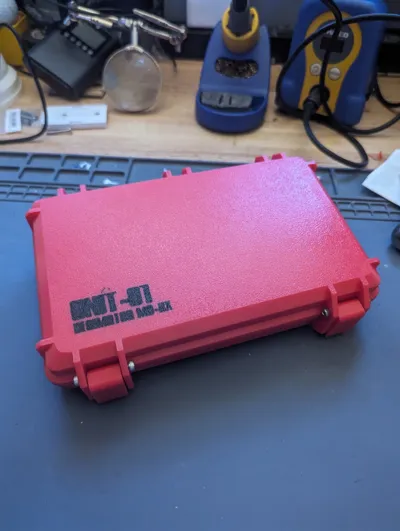

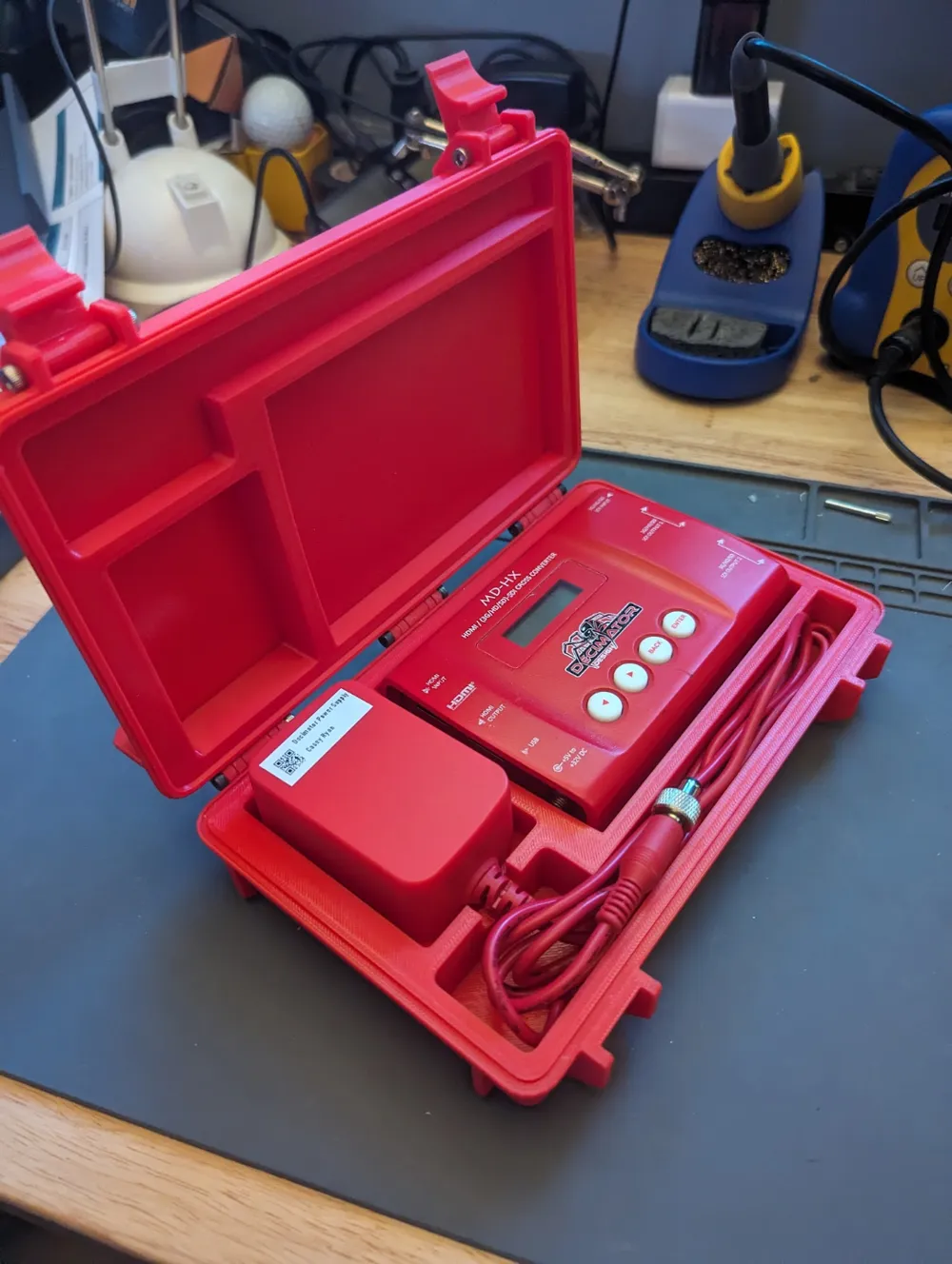

I searched for a long time to find a case for the most important piece of my event production gear. Nobody makes one so I decided to model one and here we are. It fits a Decimator MD-HX with 2mm of space one each side, I'll be lining with EVA foam to cushion a bit, but not really needed. It also has a cutout for the Decimator locking power supply. I have not modeled any space for the international power adapters, sorry.

The construction is straight forward, holes are made for M3 screws. The latches are a bit loose, but the case itself has an alignment gasket that helps with the seal.

Ive printed in PLA+ for testing and PETG+ for actual use. The PLA hinges were too fragile. I also didn't want any warping if it has to sit in a hot truck in shipping.

Hopefully you all can get some use out of this as well. I do have plans to adjust for the Decimator 12G-Cross in the future as well as Aja Fidos and Blackmagic micro-converters

Comment & Rating (5)

@Nute_9

What are the screws and nuts used in this?

The designer has replied

@cwr.bsu

I modeled them for M3 hardware. I didn't use any nuts, only machine screws, I undersized the holes a tiny bit so when you thread in the screw for the first time it will cut threads. I ran my screws in from each side of the latches and the hinges. I did it mainly for aesthetics but 6 months at my production company and they've held up fine.
