Description
To be sure you're always downloading the most up to date file, use my “DD” profiles. See changelog below for detailed updates.
BetterBox
2 Part Hinge Original Bambu Parts Box
M3 Screws - Amazon US: link
M3 Screws - Amazon EU: link
With all the success of the Print In Place BetterBox series there was a small percentage of people that had the hinges fuse together for one reason or another. According to my numbers it was about 0.8% of people, which still was enough for me to get to work and redesign the hinge in 2 separate parts (secured with a standard M3 screw) for easier printing. This works SO WELL! You can even adjust how loose or tight you want the box to open and close based on how tight you make the screw, very cool! As a bonus since this is now printed in two halves, it can easily be printed on printers with small build plates like the A1 Mini!
This box prints with “mouse ears” at the corners to help with adhesion to the build plate. Once printed, you can remove them with your fingers but it's best to use a deburring tool or utility knife.
This is another version of my 2 Part Hinged Box and part of my BetterBox series!
Check out the rest of the lineup HERE

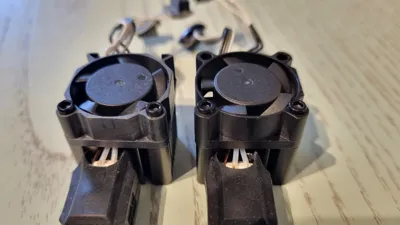

This fits X1C/X1E and P1P/P1S hot end assemblies. Note: The hot ends must have the fan installed on them to fit.
FEATURES:
2 part hinge for easy printing on smaller build plates and also eliminates the possibility of the hinges fusing together.
Hotend Assembly Holders:
- Has small retainers in the space that lightly but securely holds them in place.
- The bottom also has little extrusions on the dividers that stick up and press on the hot end assembly when the box is closed so they can't fall out. See the gallery for detailed look.
Compartments:
- Fillet ‘sweep’ in bottom to aid in taking parts out.
Box Dimensions
175mm length
107mm width (not including hinge and latch)
61mm height (closed)
Compartment Dimensions
55mm length
32mm width
27mm height
Thanks to Nanodesigner for making a 3D model of the Bambu Lab X1C Nozzle!
You can find that here: link
Of course it's not necessary but if you want to add to my beer fund it would be much appreciated! 😄
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
