Description
Membership
Commercial use for only $3/month !
NEW VERSION COMING SOON : https://www.instagram.com/reel/CnuoojpqgI1/?igshid=YmMyMTA2M2Y=
________________________________________________________________________________________________________________
🇬🇧English🇬🇧 ((In 🇫🇷Français 🇫🇷 at the bottom of the page )
________________________________________________________________________________________________________________
An economical solution which consists in buying a non expensive nerf and transforming it into an assault rifle thanks to this cross.

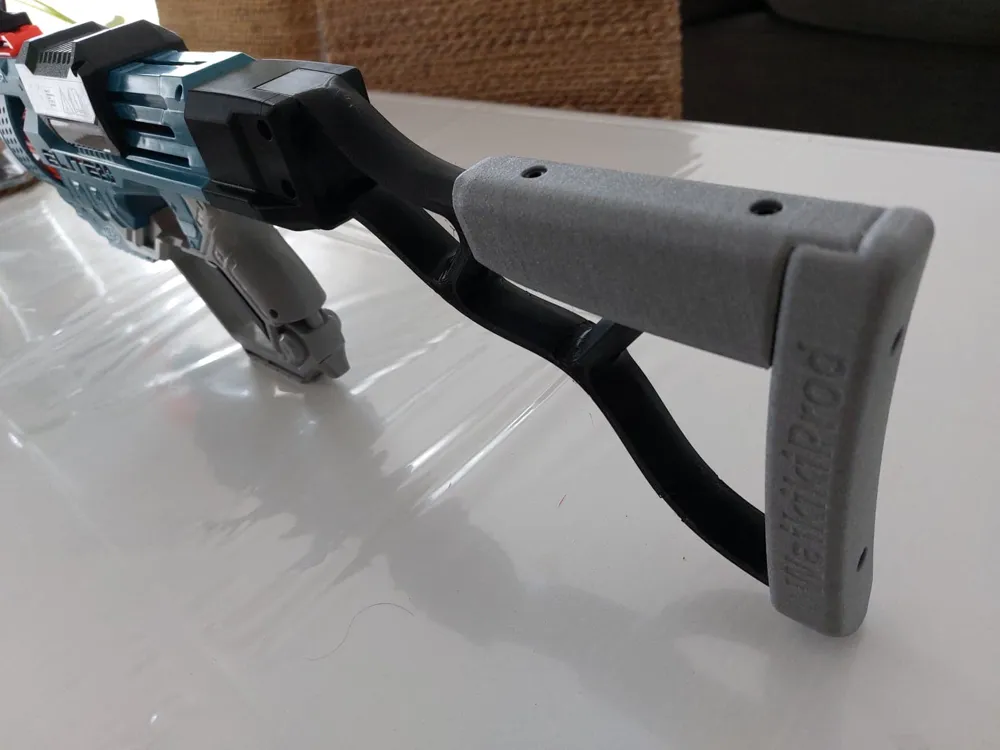

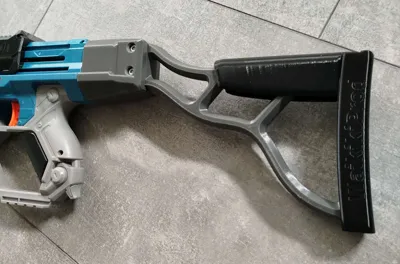

Here installed on a Nerf Commander elite 2.0, an economical solution to get an over-equipped nerf by paying only a small sum! (only 12.99€ here)
The orientation of the print has been optimized to guarantee maximum strength.
Use a heavy infill to avoid breakage or injury
For assembly you will need (Kit of screws and nuts that I use) :
- 2 x M4 L30 screws and nuts
- 4 x M4 L10 screws and nuts
Printing Recommendations :
| Resolution : | 0.2mm | Support : | NO |
| Infill : | 15% Gyroide or + | Raft : | NO |
| Material / Brand : | PETG / Arianeplast | Filament Designation : |
|

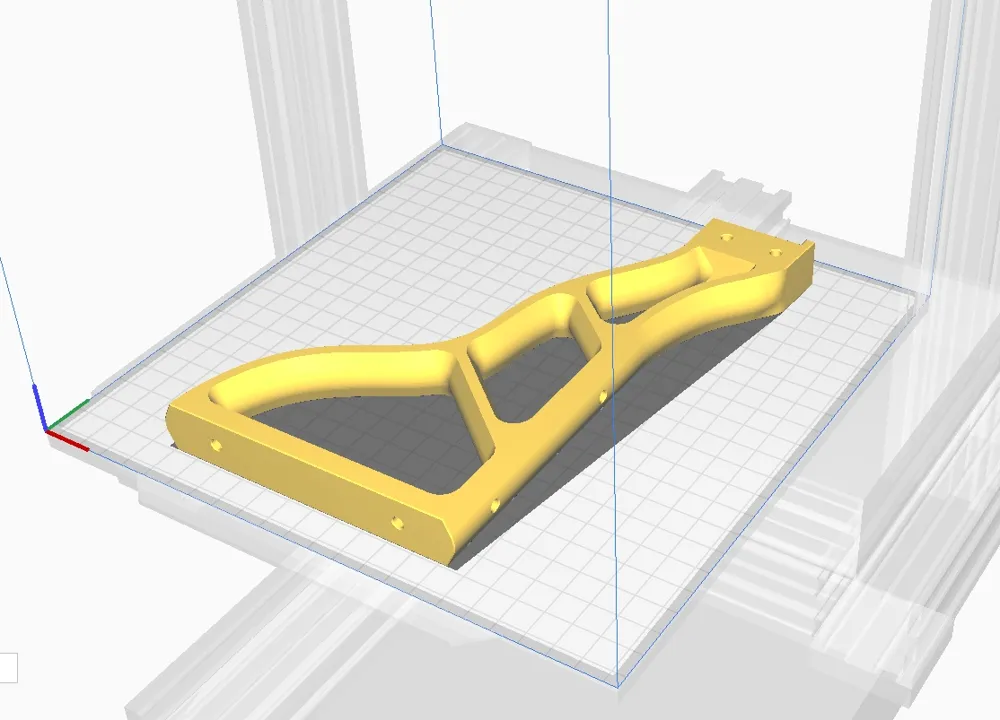

Print Position (printing doesn't need any support)
 |  |
 |  |
This conception is a remix based on the mscalora's awesome design of Nerf stock (a big thank to him for sharing his files)
You can find the reflex scope that goes with it here
You can join this printables Group for more 3dmodel of the community
You can support me by subscribing to my Patreon or using my Bambu Lab affiliate link for your purchases
Discover My Best 3D Models
 |  |  |
 |  |  |
________________________________________________________________________________________________________________
🇫🇷Français 🇫🇷
________________________________________________________________________________________________________________
An economical solution which consists in buying a non expensive nerf and transforming it into an assault rifle thanks to this cross.
Ici installé sur un Nerf Commander élite 2.0, une solution économique pour se faire un nerf suréquipé en ne payant qu'une petite somme ! (seulement 12,99€ ici)
L'orientation de l'impression a été optimisée pour garantir une résistance maximale.
Utilisez un remplissage important pour éviter les casses ou les blessures
Pour le montage il vous faudra (Kit de vis et écrous que j'utilise) :
- 2 Vis M4 L30 et leurs boulons
- 4 Vis M4 L10 et leurs boulons
Printing Recommendations :
| Resolution : | 0.2mm | Support : | NO |
| Infill : | 15% Gyroide or + | Raft : | NO |
| Material / Brand : | PETG / Arianeplast | Filament Designation : |
|
Position d'impression (l'impression ne nécessite aucun support)
| |
| |
Cette conception est un remix basé sur le super design de cross de mscalora (Un grand merci à lui pour avoir partagé ses fichiers)
Vous pouvez trouver la lunette reflex qui va avec ici
Follow me on Instagram / TikTok / Facebook / Beacons
Discover My Best 3D Models
