Rotary Template for Laser engrave 4 Business Card by kingdual

kingdual

Tools>Machine Tools

GIF

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.16mm layer, 2 walls, 15% infill

Designer

51 min

1 plate

4.8(10)

Open in Bambu Studio

Boost

162

Released

Description

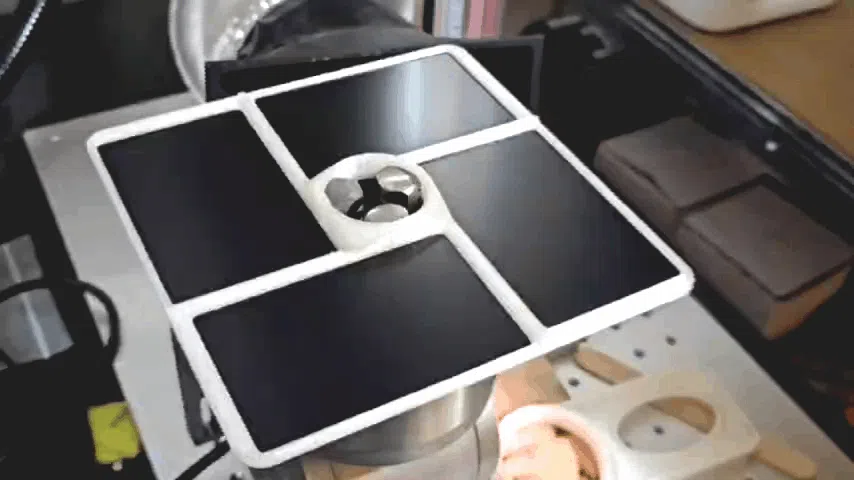

Template to engrave 4 business cards using the Rotary in galvo fiber lasers using the "repeat marking" function in ezcad or lightburn software to create a continuous production line.

How to use:
1. Print it

2. Set Rotary in vertical position and hold the template

3. Create a template in your engrave software (86mm X 54mm) alligned to 1 slot of business card

4. Use the “repeat marking” funtion and set 90° of rotation for rotary

5. Engrave only in safe condition, use the protective glass and avoid to touch the template during engrave

Boost Me (for free)

If you liked this model, hit the boost button!

rotary template business card

Comment & Rating (15)

@RaisingTheBARDe

Print Profile

0.16mm layer, 2 walls, 15% infill

very nice thank you for sharing!

@obzELiTe

Boosted

didnt think i'd need one of these, but 150 aluminium cards order said otherwise.

@scruffles

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Works 100%

@kingdual

Thanks

@MakersMade

Print Profile

0.16mm layer, 2 walls, 15% infill

can't wait to test this out on laser.

@JayMac

Thank you very much, An awesome model!

@user_3347165483

Grande trovata!!! Complimenti! Funzionale e comodo!!!

@CaveCanem

Works great in basic PLA for my new D80 Rotary.

(Edited)

@Harrie_Blankers

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

printed perfectly. and works great with my fiber laser chuck

@snowdak52

Print Profile

0.16mm layer, 2 walls, 15% infill

Worked as designed.

@gas_

Print Profile

0.16mm layer, 2 walls, 15% infill

thx for the design :) would be great if the dimension of the card space is smaller, like 86.1 x 54.1 when you have a design where the lines are 1mm away from the border regards
