Cable reel for Sunlu spool

Cable reel for Sunlu spool

Boost
230
566
14

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D

0.12mm layer, 3 walls, 10% infill
0.12mm layer, 3 walls, 10% infill
Designer
7.5 h
2 plates
4.8(6)

Open in Bambu Studio
Boost
230
566
14
12
167
48
Released

Description

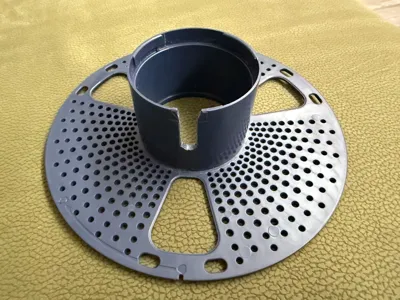

Open the spool and in the middle, drill an 8mm hole exactly where

the indentation is located on the edge of the spool. Next, cut from

the hole to the edge of the spool to allow the cable to enter, then

close the spool.

The handle should go on the side with a slight indentation, aligning

the indentation with the protrusion on the handle.

No need to worry about the other side, just snap it in.



Bill of materials



6 4x20 Wood screws

1 M6x40

Comment & Rating (14)

(0/5000)

Print Profile
0.12mm layer, 3 walls, 10% infill
I like it
0
Reply
It would be quite helpful to specify the required screws I had to search through my odds and ends box to find some that more or less fit
The designer has replied
Show original
0
Reply
I had uploaded bill of material, now I see that it's no longer there. Anyhow You need 6 4x20 Wood screws and 1 M6x40
1
Reply
Replying to @Vlado977 :
Thank you for info - Here is my spool
0
Reply
I am currently printing it but I am unable to see where to drill the hole on the photos
The designer has replied
Show original
0
Reply
here is the photo
0
Reply
Excellent
