Description

Boost Me (for free)

If you enjoy my designs, you can support my work with a boost!

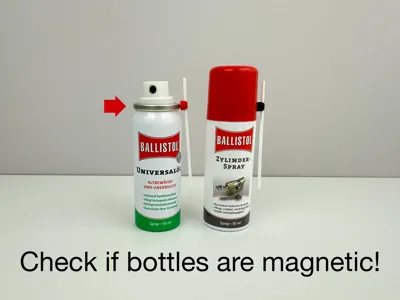

Before printing, check if your bottles are magnetic! If not, you can try the upper ring (see photos).

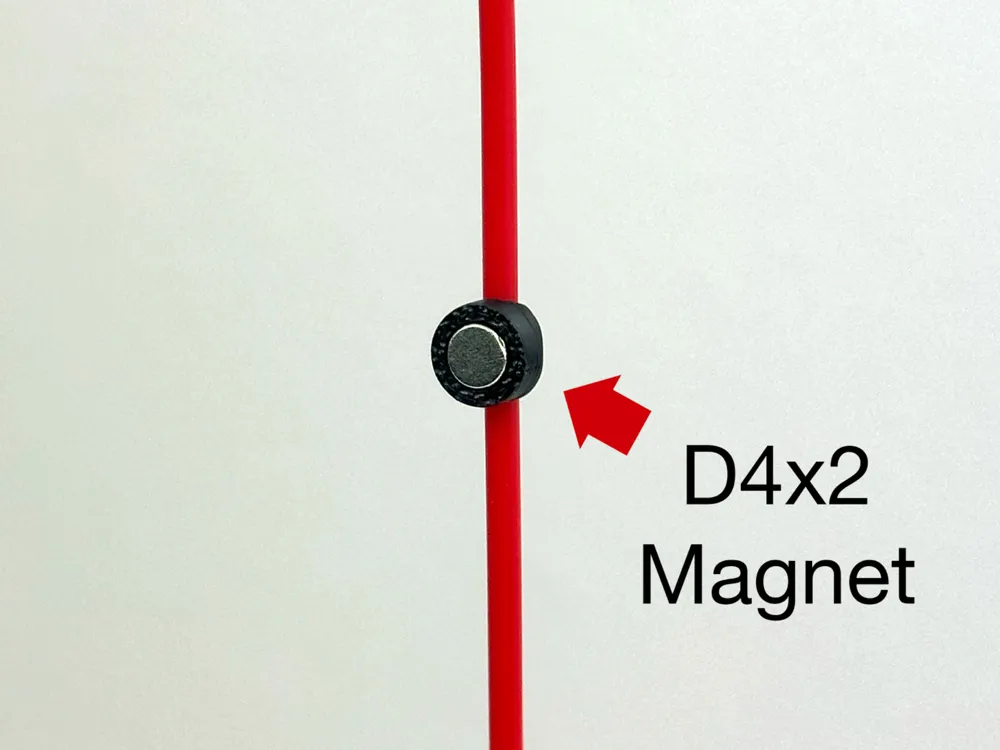

This is a super lightweight straw holder for lubricant sprays like WD-40! It was designed for D4x2mm magnets and straws with an outer diameter of about 2.15mm. Update: I made versions for D5x3 and D6x3 magnets! You should also be able to use them with slightly thinner magnets.



You can print it with standard print settings, just make sure elephant foot compensation is enabled (not default on A1 series!) and print at least 3 at once for cooling.



It was designed for a press fit, but the diameter of these magnets slightly varies. You might need to use glue if it's too loose. If the magnet doesn't fit, I included build plates with slightly upscaled versions. I tested this print on 3 printers, different filament brands and magnets. I always had success withe either 100% or 101%. Please let me know if none of the versions works or if you needed other settings.

Membership

Get a commercial license for my designs by becoming an Authorized Seller!

Join







Bill of Materials

Maker’s Supply Kits and Parts
Buy Now
Download BOM

Comment & Rating (39)

(0/5000)

Boosted
Print Profile
For D5x3 Magnets
5x3 at 100%. perfect little helper. needed a drop of glue, otherwise the magnet slipped out.
The profile uploader has replied
0
Reply
Thank you for your review and boost, I really appreciate it! Yes, sometimes glue is necessary because of the tolerances.
1
Reply
Print Profile
For D6x3 Magnets
could be on me with residual glue residue on the plate from TPU printing but unfortunately had a fail of one piece. magnets seem to slip in pretty well but I think my magnets must be 6x2 so had to use 2 of them.
0
Reply
Print Profile
For D4x2 Magnets
great idea ill probably use it for some white lithium grease cause I'm always losing the straw. But one suggestion would be to make one for bigger magnets.
The profile uploader has replied
0
Reply
Thank you for your review. I actually already published versions for 5x3 and 6x3 magnets. Anything larger than that would be overkill.
0
Reply
Replying to @Maxx_Design :
Yea I guess that’s true haven’t thought about how it would look to a gigantic magnet compared to a tiny straw. This is a great model good idea.
0
Reply
Boosted
Is a version with 5x3mm magnets available
The designer has replied
Show original
0
Reply
I added a version for them as a new profile ;)
1
Reply
Boosted
thank you. perfect. :)
0
Reply
Print Profile
For D4x2 Magnets
Made a few of these things and used the 4x2mm magnets and they stick pretty well to the cans, hopefully no more loosing those pesky straws! Thanks
The profile uploader has replied
0
Reply
Glad they worked, thank you for reviewing! :)
0
Reply
Great design and it works great!
The designer has replied
0
Reply
Thank you for boosting, I really appreciate it! :)
0
Reply
Print Profile
For D4x2 Magnets
Great print in neon green Bambu TPU for AMS on the X1C
The profile uploader has replied
0
Reply
Thank you for your review! :)
0
Reply
Print Profile
For D5x3 Magnets
these are great
The profile uploader has replied
0
Reply
Thank you! :)
0
Reply
Boosted
Print Profile
For D4x2 Magnets
Works wonderful, I always lose these little straws so helps a ton!
The profile uploader has replied
0
Reply
Thank you for your boost, I really appreciate it! :)
0
Reply
Genius
The designer has replied
0
Reply
Glad you liked it! :)
0
