Description

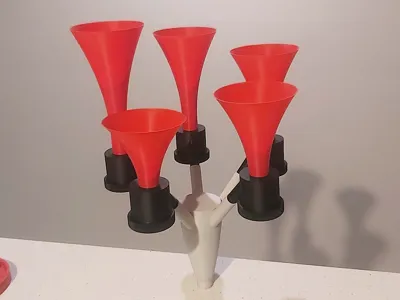

SUPER LOUD!!! Train Horn sound

5 horns all with unique notes come together to make an amazing train horn sound.

No extra parts needed, everything is 3D printed including valves and trumpets.

I have incorporated a threaded cap to retain the valve insert, this can also allow the horn to be tuned.

The horns are a push in fit and don't require any glue.

Some Notes when assembling-

Please don't tighten the caps as this will close of the valve.

Insert the horns gently to avoid cracking the outer tube.

The horns are printed using vase mode so will have to be printed individually.

Take care when removing the valve insert from the build plate as they are fragile.(only 1 layer thick)

I have had the most success printing the valves on a smooth build plate.

Test and tune each horn before final assembly onto the main distributor.

I hope you have as much fun with your Train Horn as I did creating and designing it.

Don't forget to Like, Follow and Boost if you have a spare, It really helps.

Boost Me (for free)

If you like this model please leave a Boost.!!

Comment & Rating (21)

@josevaro

It is impossible to make it sound, horn by horn yes, but all together, not even if a hurricane blows.

The designer has replied

@MadAussieMatt

Thank you for your feedback. Can you please check that there is a good seal between the horns and the distributor, Also maybe one horn is not sealing this could cause the air to release early causing a malfunction.

@MadAussieMatt

I would also suggest you try printing the valves on a smooth build plate, the valves will still function on a textured plate but require a lot more air as they don't seal as well. If you don't have a smooth build plate you could try sanding the base of the valve gently to make it smooth. Hope this helps.

(Edited)

@josevaro

Replying to @MadAussieMatt :

I will check it out if that is the case, thanks!

@weewee3dr

hey i printed one and then i printed another (horn not the whole thing) but the 2nd valve is wavy and lets air thru and cant function pls help. should i wait before the bed cools ENTIRELEY to take off the valve?

The designer has replied

@MadAussieMatt

I find it is best to let the plate cool to help release the valve, also I gently work my way around the edge a little at a time. Can I ask what build plate you are using?

@weewee3dr

Replying to @MadAussieMatt :

texttured, but it worked frist time

@user_2636490625

Boosted

Show me a video

The designer has replied

Show original

@MadAussieMatt

To hear the sound please see the video in the description. I will be adding assembly video shortly.

(Edited)

@supernate25

Boosted

This looks awesome! but I must be missing something. when I download I only see the "bell" and not the manifold, caps, or valve.

@boongintnirp54

there is a second print profile with those pieces.

@Pwebyd

how do you assemble the valves??

The designer has replied

@MadAussieMatt

I will make a video, Please check the description above, hope that helps :)

(Edited)

@user4798048

cool!

@genasoft

Print Profile

0.2mm layer, 2 walls, 15% infill

The profile uploader has replied

@MadAussieMatt

Thanks for the 5 stars!!!

@genasoft

Print Profile

0.24mm layer, 1 walls, 0% infill

@Lumon

Print Profile

0.24mm layer, 1 walls, 0% infill

@osolmfao

Print Profile

0.2mm layer, 2 walls, 15% infill
