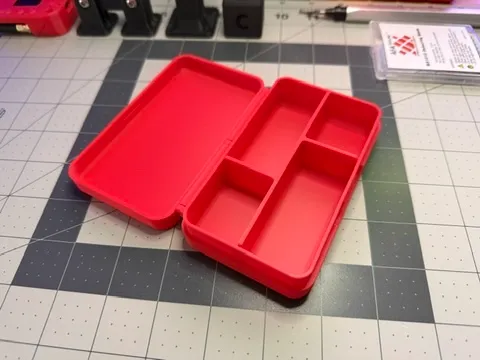

This model is100% print in place, with zero support. This box has a hinged design, and uses a detent system to keep the box shut.

This Box is was designed with the goal of learning to model 3D printable hinges in Fusion, specifically print in place hinges. I am working on a parametric version, with different configurations for size and section count.

I've printed this model with PLA and PETG with success. I have been printing this model with a .12mm layer height, but you can also use .2mm if speed/time is an issue for you. I prefer the .12mm because the hinges print a bit cleaner.
