Description

This enclosure allows you to install the following:

Tobsun EA50 buck convertor
5v Wifi Switch: https://amzn.eu/d/2VeDuTm

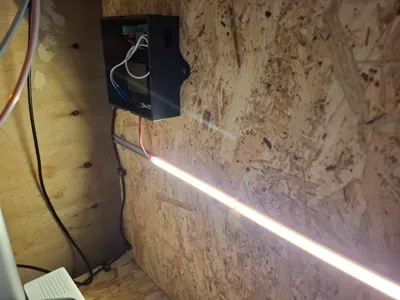

The main purpose of this design was to utilise what equipment I had to add additional lighting to my A1 printer enclosure. I already had both of the above so game on!

The A1 printer outputs 24v via the rear AMS IO port, so taking 24v from this into the Tobsun EA50, gives a 5v output to power the 5v wifi switch. This 5v wifi switch can be controlled by the eWelink app and through Amazon Alexa and google home among others. This will then allow the end user to remotely control the lighting for your printer enclosure.

Hope you like it and if you do, please consider:

Boost Me (for free)

boost me peeps.

printing emclosure lighting

Documentation (1)

Assembly Guide (1)

Notes_250416_210554.pdf
