Robot Claw for MG90s Micro Servo (Wider Grippers) by PrintWorksMakerWorld: Download Free 3D Models

PrintWorks

Education>Engineering

IP Report

Print Profile(1)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

H2D

0.2mm layer, 2 walls, 15% infill

Designer

49 min

1 plate

5.0(2)

Open in Bambu Studio

Boost

Released

Description

Boost Me (for free)

Please consider boosting! Its free and allows me to create more high-quality models to help you along your 3D printing journey!

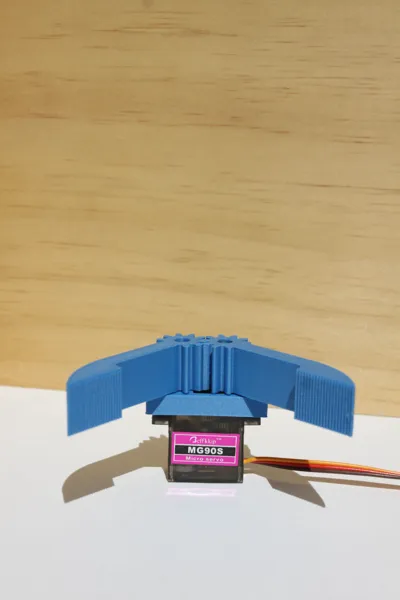

This file is perfect if you want to use your MG90S Micro Servos to make either a robotic arm or just a claw. All you need is these parts, your servo, and the screws that come with your servo. This has been printed and tested and works perfectly! There are lots of grooves along the main part of the claw to ensure that items will not slip free of the claws grip. I have many other robotic claw designs, but this one has a wider structure along with a larger grabber area, to make it much easier for the claw to pick items up!

IMPORTANT:

I have received feedback that this is not compatible with all types of micro servos. For reference, I am using a brand called Beffkkip MG90s 9g micro servos. (I get mine from amazon). The motor I used is pictured

Comment & Rating (8)

@Wolfie451

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Great fast print however today I discovered not all mg90s are the same, mine has larger shoulders making it sit incorrectly. I felt people might need to be aware of this when printing. image of mine to show what I mean. Still a very good print as long as you have the correct Mg90s

The profile uploader has replied

@Bam_Works

Thank you for the feedback! I will update my print description to accurately outline this.

@Wolfie451

Boosted

Replying to @Bam_Works :

thank you. I had a second look through amazon and it seems the cheaper options are usually like mine, so it's because I'm tight. lol.

@user_3600511833

Very clever and slim design. I designed a 3-finger-claw. I didn't know how to properly connect it, so I cut one of the arms that were delivered with the servo and glued it in. Did you put glue on the connection between the servo and the claw, or is this just pressfit?

The designer has replied

@Bam_Works

Thanks! to connect the servo to the claw I used the screws that came with my servos. to connect the individual arm parts of the claw to the base it is just sliding the pieces in, no glue or screws.

@user_905468635

Print Profile

0.2mm layer, 2 walls, 15% infill

Super

The profile uploader has replied

@Bam_Works

I’m glad you liked it!

@MRK3D1414

can you give me the code for this please
