Model Depth: 4.3in / 109mm

Normal Model Width: 19.9in / 506mm

Big Model Width: 22.2in / 563mm

“P” Height Without Roll: 5.25in / 133mm

• All print profiles are PLA
• Assembles by sliding the pieces together with puzzle-like connections in the order P1O1O2P2 as designated by the file names for the individual models. They are laid on on the print profile plates in order.
• 2 different clearance versions are available for each size in each print profile.
• A decently calibrated Bambu printer should be fine with the 0.12mm clearance versions. Print the fitment check print profile to if you are unsure which version you need.
• Mounts to the wall with 2x hidden screw cleats.
• If the parts are sticky going together then rub some candle wax on the mating surfaces. If the pieces still won't go together, check that you aren't over-extruding. I have the model gap set at .12mm per side

Normal Size:

This is a rather large print, uses 406g of material Mounting distance between cleats (the gap width) is 14-1/8in / 359.4mm

Big Size, For Larger Diameter Rolls:

This version has cups that measure 5.25in / 133.4mm dia for big rolls. The normal size is 4.69in / 119mm dia.

This is an even larger print, uses 430g of material. Mounting distance between cleats (the gap width) is 15-13/16in / 402mm

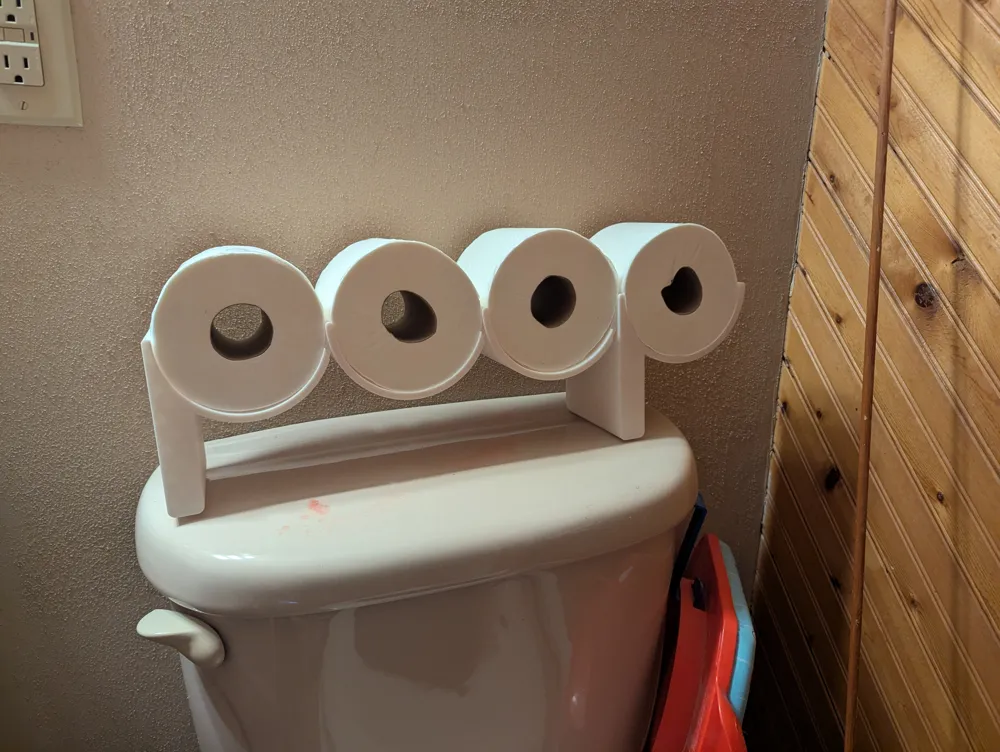

You can scale either of my sizes to match your roll if you must. I used Scott 1000 in my picture for reference.

REV Notes

Mar 26th 2025 Updated the model files to a sleeker better version. I have saved the old version model files in their own folder if you need them.

Apr 3rd 2025 Added 0.15mm clearance version and a fitment check print profile.
