Trx4m lcg chassis by Chippy 27

Chippy 27

Hobby & DIY>RC

IP Report

Print Profile(3)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

0.2mm layer, 2 walls, 15% infill

Designer

1.2 h

1 plate

5.0(6)

a1 mini 0.2mm layer, 2 walls, 15% infill

Designer

1.1 h

1 plate

5.0(1)

0.12mm layer, 6 walls, 100% infill

2.4 h

1 plate

Open in Bambu Studio

Boost

Released

Description

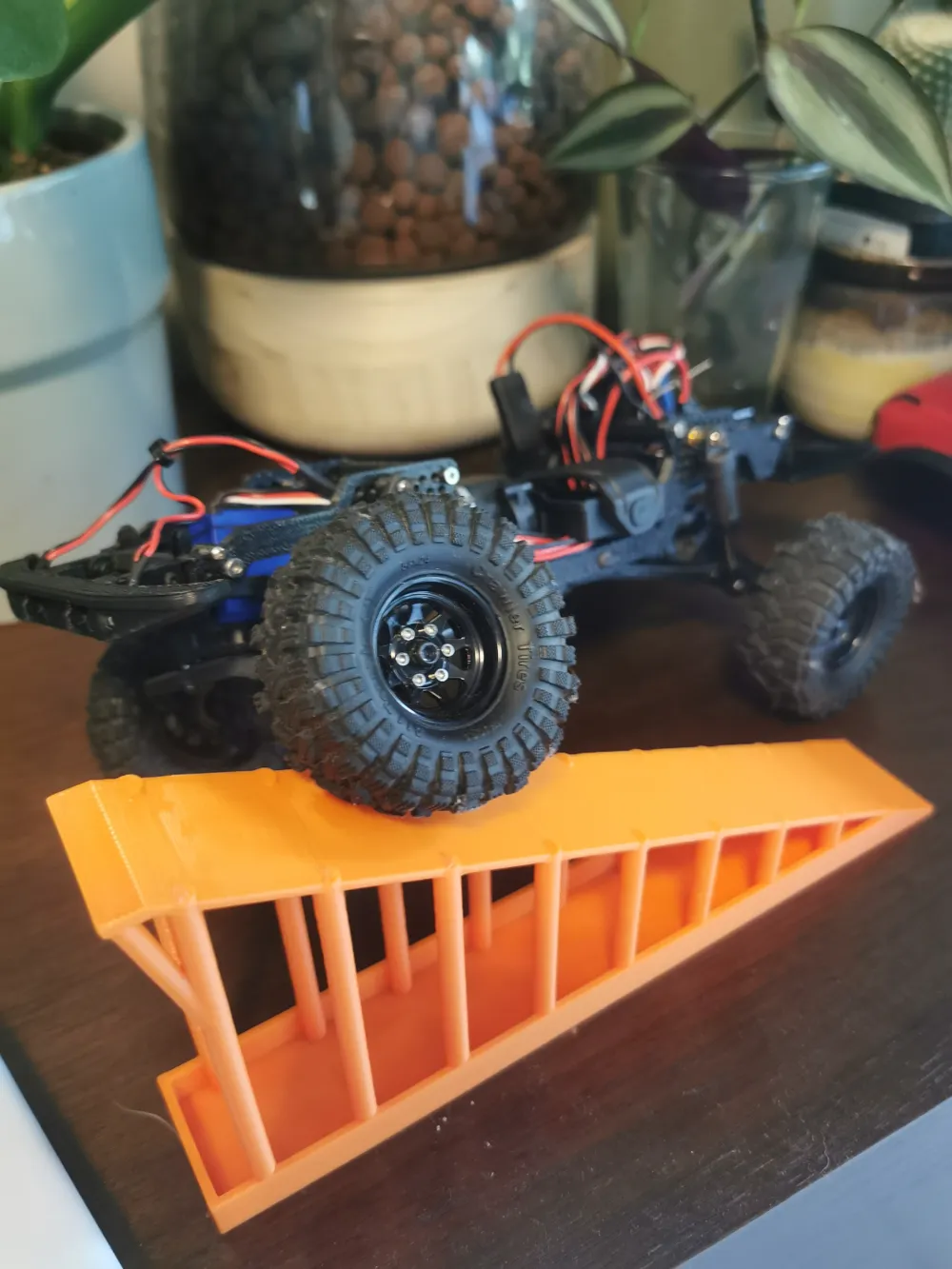

this is a remix of ex-pigeons design and its a Trx4m lcg chassis for the bronco and defender (only tested on bronco)

this is an awesome chassis that can completely change how your crawler performs it improves how steep it can climb, improves the flex by a lot, and it's very simple to install,

you can retain all of the stock parts, but it works better with longer shocks, the stock shocks bolts just screw into any of the multiple holes no nut needed, I've taken the springs of my shocks to improve flex but you can keep the springs on,

no supports, i printed in petg but pla should work fine

you need a few extra bolts to assemble

M2.5 x 15mm, total 4 pieces

M2 x 8mm, total 10 pieces

M2.5 x 8mm, total 4 pieces

m1.4 x 6mm, total 6 pieces

Documentation (1)

Assembly Guide (1)


Comment & Rating (27)

@user_2414686213

Print Profile

0.2mm layer, 2 walls, 15% infill

I had no idea that it would give it a lift but it is cool now time for new suspension

@user_1379626020

looks great on the build, if you wanted you can remove the springs from the shocks to lower it, until you get the new shocks

@user_2414686213

Replying to @user_1379626020 :

I will try that

@user_2414686213

got the new shocks works better

@Maverikmike

thanks for this print profile. amazing job. came out great. printed in PETG.

The designer has replied

@user_1379626020

Thanks for printing I'm glad you liked it

@user_3391645320

Print Profile

0.2mm layer, 2 walls, 15% infill

awesome

@user_1379626020

thanks for the rating

@user_3391645320

do u have any other things for trx4m

@user_1379626020

Replying to @user_3391645320 :

i have a few models, you can check them out on my profile

@FeRos

Boosted

Do you know where I can find add-ons for this project

The designer has replied

Show original

@user_1379626020

you might be able to get the screw at your local hardware store or you can find them on amazon by searching m2 screws kit and you can by the m1.6 screw separetly on amazon

@FeRos

Boosted

Replying to @user_1379626020 :

Thank you very much!

Show original

@user_9196463

where can I buy a set of these specific bolts? the sizes are kinda all over the place and I can't find a kit that includes them

The designer has replied

@user_1379626020

here are the links to the screw kits, you may be able to find a cheaper option, MEZOKUCEL Nuts, 230pcs M2 304 Stainless Steel Cup Head Hex Socket Bolt Screws Nuts Assortment Kit with Box Embedded Nuts Hex Socket Screw (230pcs) : Amazon.com.au: Home Improvement, and this is the m1.6 bolts FandWay 800pcs 16 Kinds M1 M1.2 M1.4 M1.6 M1.7 Nickel-Plated Phillips Pan Head Small Screws,Electronic Repair Micro Screws, Tiny Screws,Mini Machine Screw Assortment Kit : Amazon.com.au

@user_397242768

Print Profile

0.2mm layer, 2 walls, 15% infill

prints well. haven’t built yet

@user_1379626020

thanks for printing

@user_691809006

Boosted

Print Profile

a1 mini 0.2mm layer, 2 walls, 15% infill

@user_1379626020

thanks for the rating

@user_1379626020

thanks for the rating

@user_3671095609

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_1379626020

thanks for the rating😁

@user_691809006

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_1379626020

thanks for the rating😁

@superscrap1985

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_1379626020

thanks for the rating 😁
