0.2mm layer, 2 walls, 15% infill

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>THANK YOU!! </boostcontent></boostme><h3>DIY FM/AM Haiflossen-Antenne – Anleitung</h3><h4>Deutsch</h4>Materialien:<ul><li>75 cm isolierter Kupferdraht</li><li>Stab (z. B. Kunststoff oder Holz)</li><li>Kabel (10–15 cm)</li><li>Kabelöse und M5-Schraube</li><li>Wasserdichtes doppelseitiges Klebeband</li><li>Klebstoff</li></ul>Anleitung:<ol><li>Wickele den 75 cm langen Kupferdraht spiralförmig um den Stab.</li><li>Löte ein Kabel an ein Ende des Kupferdrahts, das andere Ende endet in einer Kabelöse.</li><li>Klebe die Wicklung und das Kabel sicher in die Haiflossen-Abdeckung.</li><li>Führe die Öse nach unten und befestige sie mit der M5-Schraube am bestehenden Antennenfuß des Autos.</li><li>Befestige die Haiflosse mit wasserdichtem doppelseitigem Klebeband auf dem Dach.</li></ol>Hinweis: Stelle sicher, dass alle Verbindungen gut isoliert und wasserdicht sind. EnglishMaterials:<ul><li>75 cm insulated copper wire</li><li>Cable (10–15 cm)</li><li>Cable lug and M5 screw</li><li>Waterproof double-sided tape</li><li>Adhesive</li></ul>Instructions:<ol><li>Wind the 75 cm copper wire spirally around the rod.</li><li>Solder a cable to one end of the copper wire, and attach a cable lug to the other end.</li><li>Secure the winding and cable inside the shark fin cover using adhesive.</li><li>Lead the lug through the bottom and attach it to the car’s existing antenna base with the M5 screw.</li><li>Fix the shark fin to the car roof using waterproof double-sided tape.</li></ol>Note: Ensure all connections are well-insulated and waterproof.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>THANK YOU!! </boostcontent></boostme><h3>DIY FM/AM Shark Fin Antenna – Instructions</h3><h4>German</h4>Materials:<ul><li>75 cm insulated copper wire</li><li>Rod (e.g., plastic or wood)</li><li>Cable (10–15 cm)</li><li>Cable lug and M5 screw</li><li>Waterproof double-sided adhesive tape</li><li>Adhesive</li></ul>Instructions:<ol><li>Wind the 75 cm copper wire spirally around the rod</li><li>Solder a cable to one end of the copper wire, the other end terminating in a cable lug</li><li>Securely affix the winding and cable within the shark fin cover</li><li>Feed the lug downwards and fasten it to the car’s existing antenna base using the M5 screw</li><li>Attach the shark fin to the roof using waterproof double-sided adhesive tape</li></ol>Note: Ensure all connections are well-insulated and waterproof EnglishMaterials:<ul><li>75 cm insulated copper wire</li><li>Cable (10–15 cm)</li><li>Cable lug and M5 screw</li><li>Waterproof double-sided tape</li><li>Adhesive</li></ul>Instructions:<ol><li>Wind the 75 cm copper wire spirally around the rod</li><li>Solder a cable to one end of the copper wire, and attach a cable lug to the other end</li><li>Secure the winding and cable inside the shark fin cover using adhesive</li><li>Lead the lug through the bottom and attach it to the car’s existing antenna base with the M5 screw</li><li>Fix the shark fin to the car roof using waterproof double-sided tape</li></ol>Note: Ensure all connections are well-insulated and waterproof

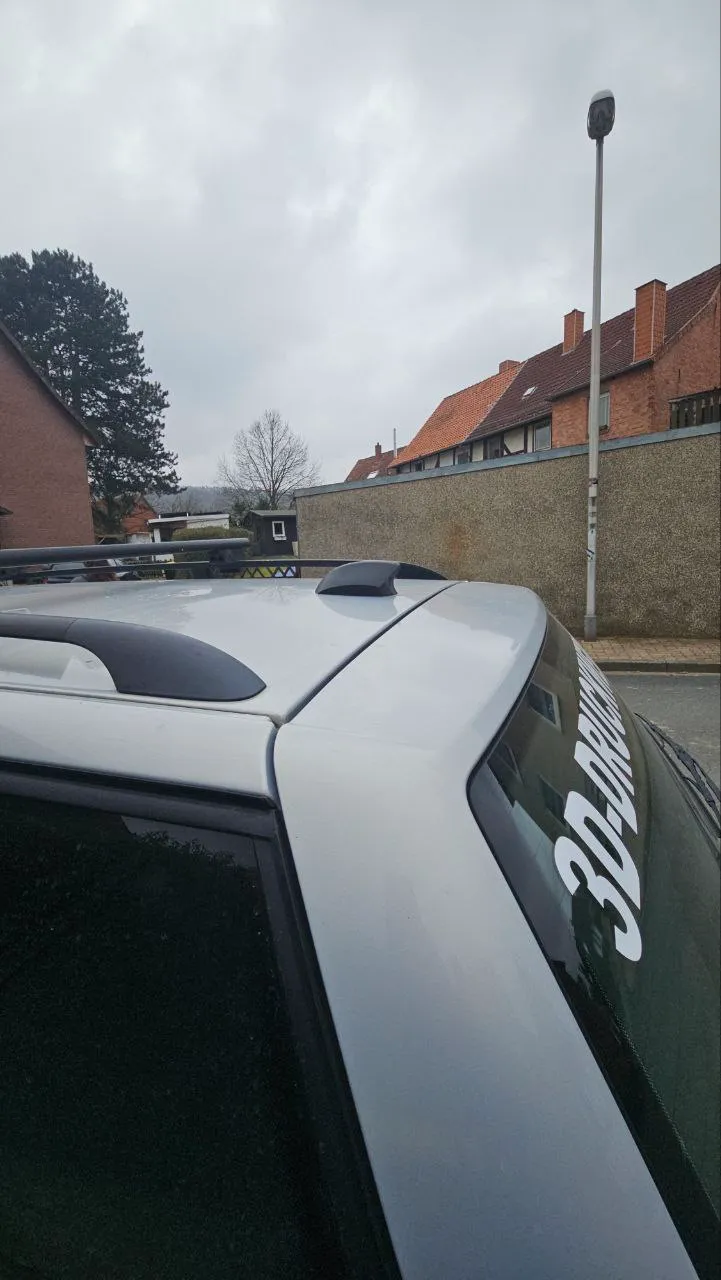

Sharkfin Antenna Housing

ASIA

Print Profile(1)

Description

DIY FM/AM Shark Fin Antenna – Instructions

German
