Description

Update:

Thicker version uploaded for those who prefer a sturdier design and are willing to wait an extra 30min. Select the 2nd Profile.

Boost Me (for free)

Thanks for the support.

-----------------------------

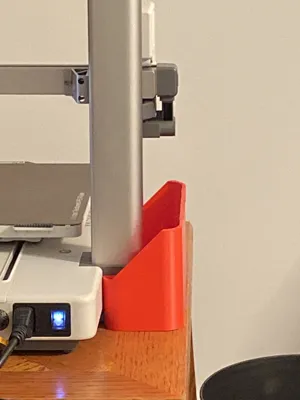

After trying several poop buckets and honestly getting frustrated that they all seem to fail at doing the job of catching the poop, I sat in front of the printer and kept loading and unloading filament to figure out the best design. Here what I learned:

A lot of the designs were too short

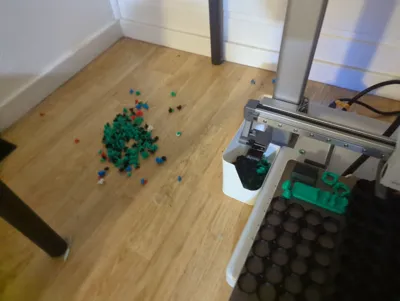

Most of ones at the appropriate height don't take into consideration that the poop will hit the wall and bounce back onto the table or worse, the build plate, so the bucket width is important.
I looked at how far the poop gets after hitting the wall to get the minimum bucket width need to catch it.
Because these are irregular shapes, it's hard to predict the angle it will travel, so I had to shield the front and back.

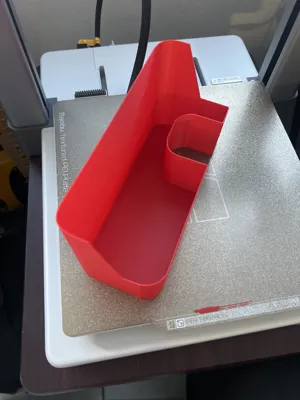

I couldn't just remix one of the designs I had seen or used, so I just started hand drawing, then use cardboard to mock-up the design. This is and result. So far, no poop escapes.

The design is rough, I might refine it later, but I went for function over looks as I am a novice at this.

If anyone thinks this is like their design, I will gladly attribute some credit to them, as I've created this after looking at and trying several.

poop bucket

Comment & Rating (39)

@user_2883926399

Print Profile

0.28mm layer, 2 walls, 15% infill

Excellent file. Fits perfectly.

The profile uploader has replied

@user_3043734009

Thanks for the stars. I really appreciate it.

@dansimpson

Print Profile

0.28mm layer, 2 walls, 15% infill

Really nice quick print …. Thank You

The profile uploader has replied

@user_3043734009

Thanks for the positive rating.

@Ebstencil

Print Profile

0.28mm layer, 2 walls, 15% infill

It does a very good job of catching poop, it prints very easily, it lacks aesthetics but I like it

The profile uploader has replied

@user_3043734009

Thanks for the review. Yes, I focused on function. I am working on a more finished version and will post it soon.

@user_234442565

Boosted

Substantial improvement, not sure how well it holds up for taller prints, but very good so far

The designer has replied

@user_3043734009

Thanks for the Boost and thanks for posting the picture. It's very cool to see something you worked hard at being used by others.

@max_zgz

Print Profile

0.28mm layer, 2 walls, 15% infill

I’m honestly quite disappointed with the poop collector for the A1. While I appreciate the concept, the execution falls short. The walls are extremely thin, and unfortunately, it broke while I was removing it from the print bed. A sturdier design or thicker walls would make a big difference. I hope future versions improve on this, because right now it’s just not durable enough for practical use.

The profile uploader has replied

@user_3043734009

Hi Max, While I appreciate you taking the time to comment, you are the first out of 120 successful printers to find fault. Please note, there are two profiles, the second is thicker and sturdier, but takes longer to print. If you printed the thicker model and had this issue, please let me know and I will gladly fix it.

@max_zgz

Replying to @user_3043734009 :

Okay, my bad. Sorry for not noticing it at first. I will redoit :D

@user_3043734009

Replying to @max_zgz :

Cool, let me know how it turns out. I'm happy to refine it further. I am learning a lot about structural design with this simple bucket. Thanks for giving it another try.

@ThijsMelisse

Print Profile

0.28mm layer, 2 walls, 15% infill

a little bit too thin imo

The profile uploader has replied

@user_3043734009

Try the other model. It's thicker and more stable but take 30 min more to print.

@ThijsMelisse

Replying to @user_3043734009 :

oh didnt see the other model. will try it soon thanks.

@JAB_Designs

Print Profile

0.28mm layer, 2 walls, 15% infill

Cool print thanks.

The profile uploader has replied

@user_3043734009

Thanks for the stars. I appreciate the support.

@mastermakes

Print Profile

0.28mm layer, 2 walls, 15% infill

works well and fast print

The profile uploader has replied

@user_3043734009

Thanks for the stars. It's amazing what you can do with just the Bambu Studio slicer. I had fun making this and I really enjoy the feedback.

@user_1098076228

Print Profile

0.28mm layer, 2 walls, 15% infill

only my second print and came out well

The profile uploader has replied

@user_3043734009

Happy it worked out well for you and thanks for the rating.

@user_1104092299

The slightly curved walls seem to eliminate the flimsy feel of thinness, resulting in increased strength

The designer has replied

Show original

@user_3043734009

Correct. My original design was rectangle, and you are correct, it was flimsy with thin walls and moved around with the vibration of the machine. So, I started over the design, and I sketched it with rounded corners. I learned that with rounded corners I could use thin walls and still make it larger and more stable. Thanks for noticing. I had fun learning as I went along.

(Edited)
