Description

Note: I recommend not using Silk filament for the Helix.

Note 2: AMS Profiles work without AMS - It will only print the one color

The Design

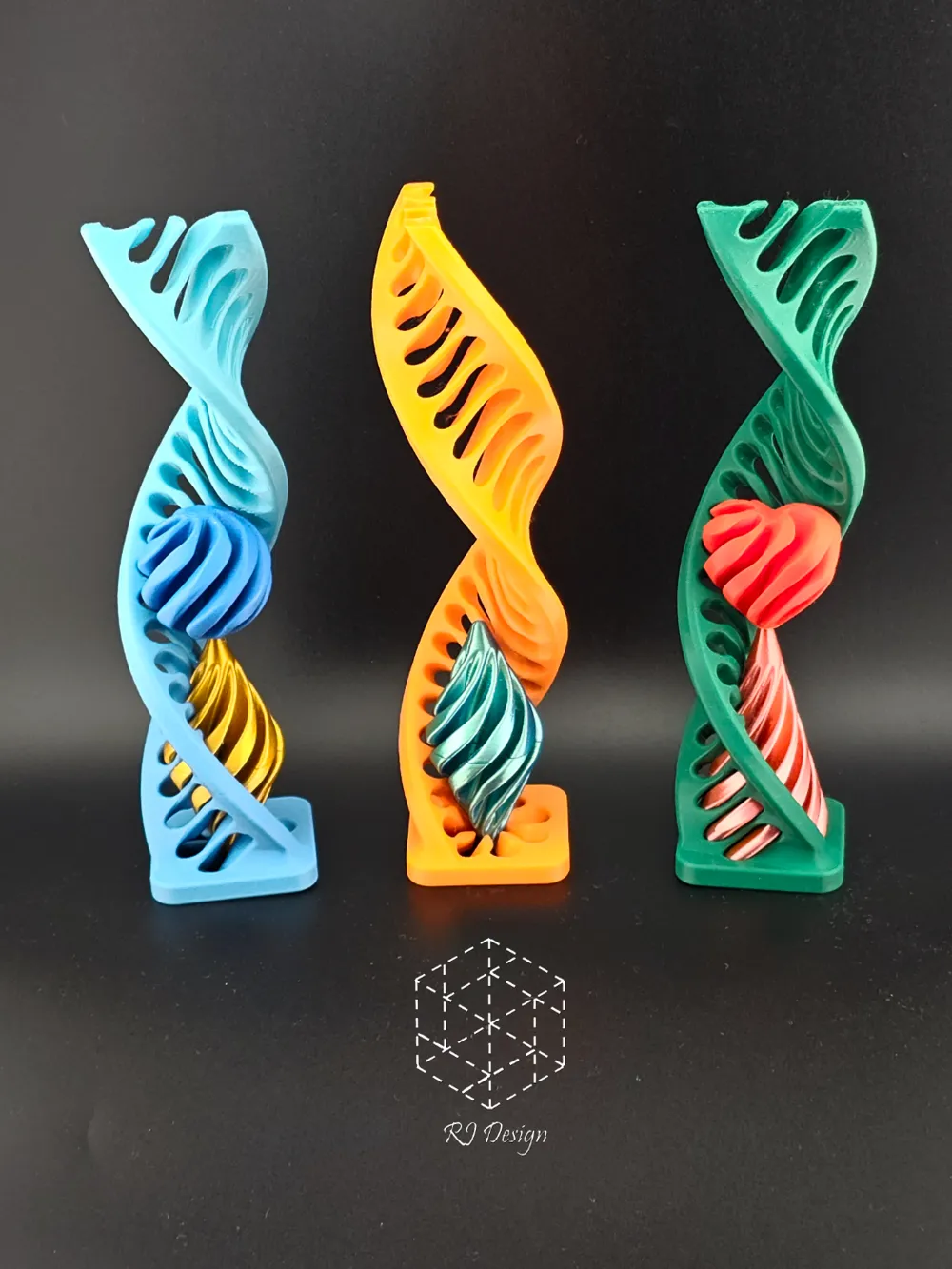

My Latest addition to the V3 Series is here. A full height helix at 179mm (180mm causes issues) with an inner plumbob

The dimensions of the Helix are approximately: 179mm x 46mm x 46mm

The dimensions of the Plumbob are: 68mm x 32mm x 32mm

Clicking the inner part should be fairly intuitive, but i can add images if needed.

Let me know if you experience any issues.

"Boosts" reward the Creators of models you like.

If you like this model please consider giving it a Boost!

Boost Me (for free)

Never Needed, Always appreciated.

Printing

I recommend not using Silk for the Helix. The build plate needs to be clean for good adhesion

The Helix uses Variable Layer Height to ensure a good finish.

Please ensure filament is relatively dry (wet filament seems to have a poor surface finish)

Once printed let the build plate cool before trying to remove.

2 Print Profiles from me:

Single Color Print by Part

Two Color Print by Part (for A series and P/X Series)

My Work

After many years in Engineering, I've just decided to try and follow my childhood dream of becoming of a Creative Designer.

A Creative Designer of what? No idea! Right now I really like puzzles, mechanisms and kinetic sculptures so that's where I'm going to focus my efforts.

Membership

If you want to sell prints of my designs, or just support me please subscribe to the commercial license. Thank you!

Join

Or you can join my Patreon for More Exclusive Designs here:

https://www.patreon.com/RJ_Design

Comment & Rating (367)

@Nocho

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

the passthrough piece printed well and the tall helix is mesmerizing to watch as it passes through. printed well in matte black.

@KraftyKristi

Boosted

where did you find the other shapes? I only seen the cones

@Nocho

Replying to @KraftyKristi :

on makerworld. other models have other passthroughs that fit the v3 parts

@KraftyKristi

Boosted

Replying to @Nocho :

same designer ?

@Reacted_Scortch

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

Follow the instructions and don’t use silk. mine broke in the plate but when I printed with regular PLA it printed fine

@RJDesign

That's fustrating, do you have any pictures? And which filament and printer was this on?

(Edited)

@Reacted_Scortch

Replying to @RJDesign :

A1, Sunlu Silk PLA+

@RJDesign

Replying to @Reacted_Scortch :

Ah thats annoying. I too have had an issue with silk filaments being too fragile for this design. I had recommended in the description not using silk for the helix. Fustrating but I hope this helps

@mdvorak0105

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

love

@SuttonTaylor

what filamwnt did you use? (colour/brand) love it!

@mdvorak0105

Replying to @SuttonTaylor :

i used bambu lab gradient color

@3DRIO

⭐⭐⭐⭐⭐ this is the most amazing series of passthroughs I have seen because that all work together!

@Romans1x16

Found you again! 🤣

@3DRIO

Replying to @Romans1x16 :

😶‍🌫️

@Romans1x16

Replying to @3DRIO :

🥸

@leo2005

Print Profile

A1mini, 50%, ~ 45 min. bei 160% Speed

I couldn't get mine to work because the little ball was too tight of a fit.

@user_618762948

Attempt inserting the cone from the base and lightly lubricate the helix with petroleum jelly After a few attempts, it should work considerably better The profile has been printed many times previously Only two similar issues have been reported thus far Hopefully, this will resolve your issue as well

Show original

@3DOBJ

Boosted

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

It resembles a DNA strand Decorative and engaging

Show original

@RJDesign

Thank you!

@kopytko19

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

Mesmerizing, great design and so much fun :)

@RJDesign

Looks Great!

@Liberty_Bell

I finished this print in Petg translucent blue and it looks great. My only problem is the interior shape does not want to slide down the helix all the way, without some force.

The designer has replied

@RJDesign

I haven't tried in petg, have you got an image of the over hang area (the bit which could become rough)

@Liberty_Bell

Replying to @RJDesign :

It looks great despite the rough area :)

(Edited)

@RJDesign

Replying to @Liberty_Bell :

Interresting, what filament is this?

@maxgallows

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

Very cool. thank you!

@2JsCustoms

Print Profile

0.2mm layer, Print by Part, 2 walls, 15% infill

very cool fidget toy
