Description

Introduction

Do you have those Bambu Lab reusable spools cardboard centres? Do you have lots of them? Do you wish to reuse these?

Of course you do, and you are a good person who prefers to reuse, before recycling.

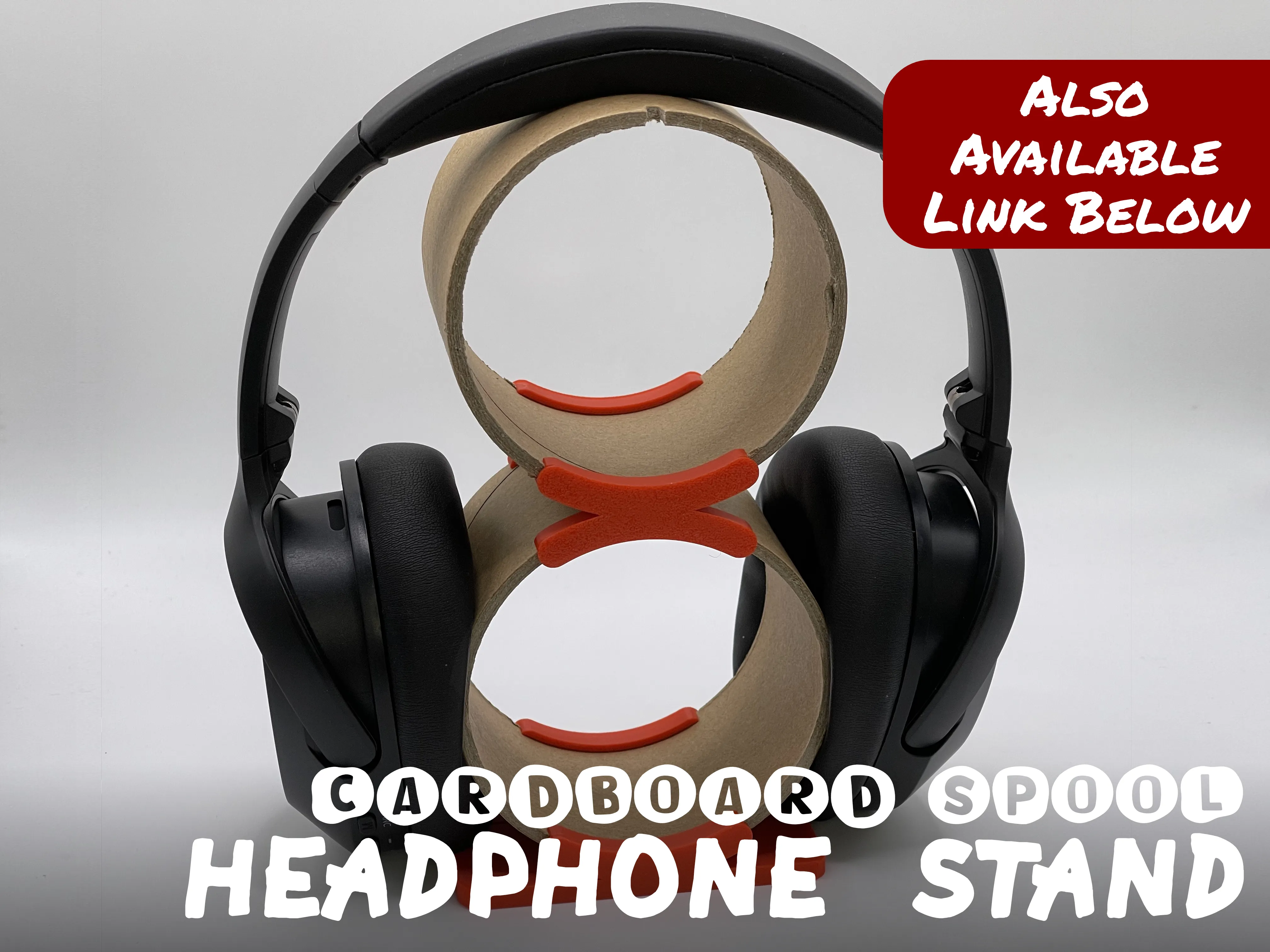

The Connector Set contains many parts, meaning you can make various projects and join in various ways. You can connect cardboard spools upwards and sideways.

Usage

Simply print and push onto the edge of the spools.

Important

Be aware that not all cardboard inner spools are created equal. Some cardboard sleeves have different dimensions or are not perfectly circular. If this occurs, you may need to manipulate them before they will connect.

Options

Base
Lid
Joiner
Lid with Grid
Joiner with Grid
Connectors
Stand
Ring and 1 x connector
Ring and 2 x connectors (0º & 90º)
Ring and 2 x connectors (0º & 120º)
Ring and 2 x connectors (0º & 180º)
Ring and 3 x connectors (0º, 90º & 180º)
Ring and 3 x connectors (0º, 120º & 240º)
Ring and 4 x connectors (0º, 90º, 180º & 270º)

I strongly suggest you look at the Various Pots - Cardboard Spools which extend support into battery pots of various types.
