Rugged Magnetic Eyewear Hard Case Vault

An elegant and safe way to transport your eyewear. Durable enough to be packed in luggage, gear bags, etc without fear of damaging your glasses. Glasses should be wrapped in a microfiber cloth or carry bag. Strong magnetic closure keeps the vault closed until you want it open. Finger grips ease opening.

Holds glasses up to 160mm Wide and 65mm Tall with a folded height of 45mm or less.

Overall size - 175mm Tall - 75mm Wide - 50mm Deep

IMPORTANT: There are two separate parts, the inner drawer and the outer housing. You must download and print BOTH to have a complete case.

Requires 4pcs 15X3 Rare Earth Magnet - See BOM. - Install with a drop of your favorite super glue. Use a magnet on the outside to guide the magnets into their spots in the housing. I use a chopstick to put a dab of glue in each cavity then guide it in with a magnet.

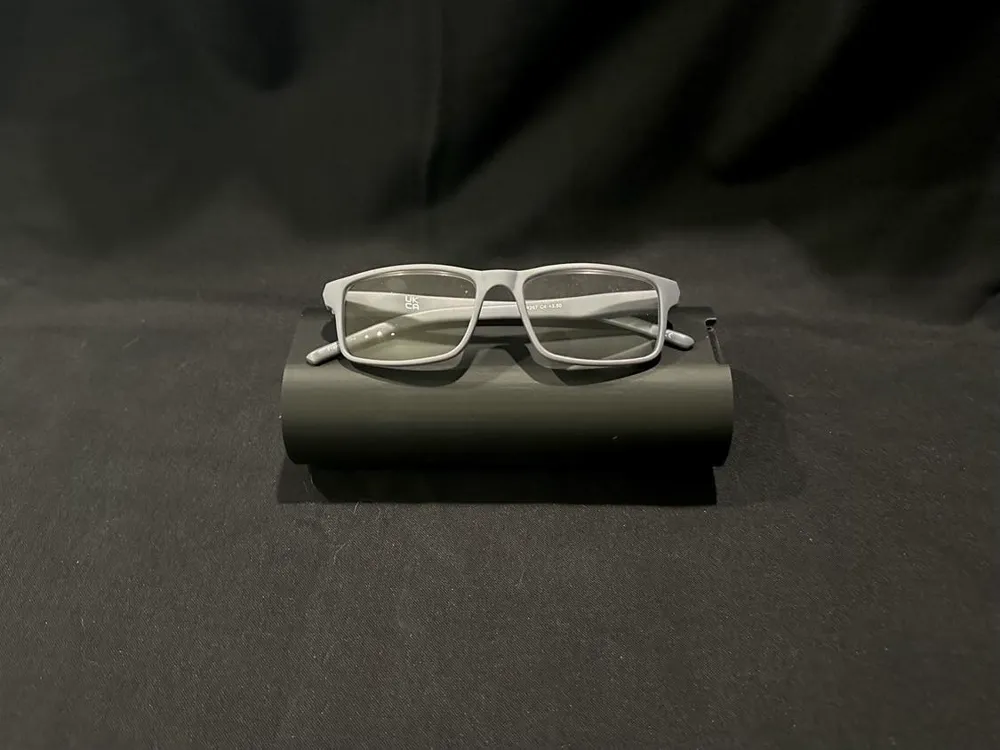

Example printed in Bambu Lab Matte Charcoal.

Bill of Materials

Maker’s Supply Kits and Parts

D15x3mm Round Magnet (20PCS) - CA011

B-CA011

6.15 USD

× 1

Bambu Filaments

Charcoal

A01-K1-1.75-1000-SPLFREE

19.99 USD

× 1

Buy Now

Download BOM

Comment & Rating (39)

@DrWiz_647197834

Boosted

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

I like this hard case. It printed out perfectly.

The profile uploader has replied

@BattCave

Thank you!

@user_1469534467

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

pla+👍

@user_3013541971

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

This piece elevates "robust" to a whole new level

Show original

@Smokedog77

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

Came out great on my P1S.

@Smokedog77

Print Profile

OUTER HOUSING - 0.2mm layer, 4 walls, 15% infill

Came out great on my P1S.

@Keman96

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

@hollyk

Boosted

Print Profile

OUTER HOUSING - 0.2mm layer, 4 walls, 15% infill

Very chic

The profile uploader has replied

Show original

@BattCave

Thank you!

@Printz_charmin

Boosted

nice easy design

The designer has replied

@BattCave

Thank you!

@Gen5V8

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

The print quality is superb and clean However, the case becomes almost impossible to open when all four magnets are used Two would have been perfectly sufficient for this size I will have to reprint the whole thing

The profile uploader has replied

Show original

@BattCave

My kids can open it fine, that's how I decided the size of magnet. Not sure what to tell you. You don't want it to just shake open, it becomes pointless. 1 magnet it will shake open easily.

@Gen5V8

Replying to @BattCave :

I adhered the magnets so that the drawer is pulled into the box by the magnets Neodymium magnets Without a sharp object, opening the box is nearly impossible 🙈

Show original

@SwissK

Print Profile

INNER DRAWER - 0.16mm layer, 4 walls, 15% infill

nice design and it works great
