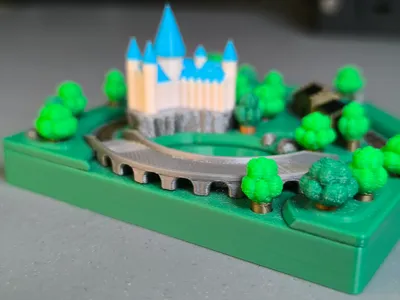

Mini Train - Functional Hogwarts Diorama

The Mini Train series doesn't stop! This is the fifth Mini Train Diorama. I decided to design a harry potter scenery, with the legendary Hogwarts Express. The terrain includes the "Hogsmeade" train station, the Hogwarts castle and as special the arched bridge (Glenfinnan Viadukt). This was the first attempt to add a bit of height to the tracks. And it works! The train drives over the slope of the bridge without any problems. As in the other dioramas, you can turn the hand-wheel on the outside to let the little train drive.

The new Hogwarts express is compatible to the previous designs. (Mountain V1.2)

All printed parts are designed to get an good result with a 0,4 nozzle and with minimal color changes to reduce waste.

→ Requested Motorization is done!

More is coming… stay tuned….check the “Mini Train collection” and leave a follow👍

Membership

Thank you for any support! You can help me to offer more free models on Makerworld with a "Commerical Licence" or "Donations" subscription.

Join

Boost Me (for free)

Printing:

Note that some parts are very small. Good adhesion is necessary!

Following PLA Basic Filaments are used

Silver

Brown

Black

Mistletoe Green

+ Bambu Green for mixing up trees

+ Cyan & Beige for the castle

+ Red and Gold for the train

Other colors are possible of course, look what you have in stock.

I think it could be easy done with single color, if you want to color from hand.

I printed with a 0,4mm nozzle! Iam very pleased with the result but you can try a 0,2 nozzle as well.

Assembly:

*new Video is coming watch from the previous design:

→Insta

Optional: Smooth the slope from the bridge with sandpaper,scraper or a sharp knife for the best result.

Used a triangular scraper to smooth the layer lines a bit.

You need 6pcs round 4x2 magnets magnets for assembly.

Insert 3pcs Magnets in the train and wagon with same polarity
Insert Magnets in the 3 pins all with same polarity but opposite direction than before! The Pins must attract the train

**Insert the pins,use the train to hold them in place.**

Arrange the pins so that they are caught by the wheel and press it into position

Terrain on top and press trees in the holes. You can add a bit of glue to combine.
Also glue the train station and the castle in the position
Place the train to the magnetic position and have fun 😀👍

I hope you like this little project.

If you want to support me, you can simply follow, boost & like the model.

You want to sell printed parts from my designs? Commercial license you get at my Makerworld profile or on Patreon:

https://www.patreon.com/BamBamDesign/

Membership

You want to sell printed objects from my designs or just support my work? Now you can subscribe on Makerworld! Thank you!

Join
