Rotating Square Lithophane Box
Print Profile(1)
Description

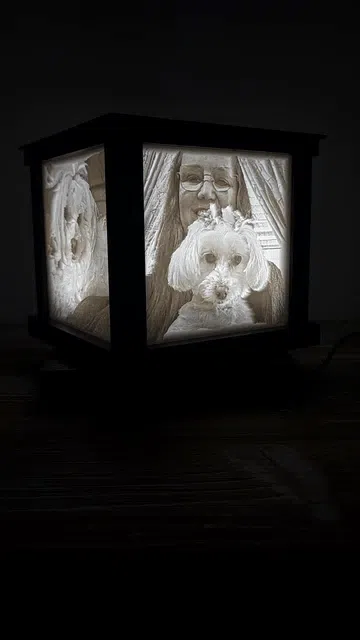

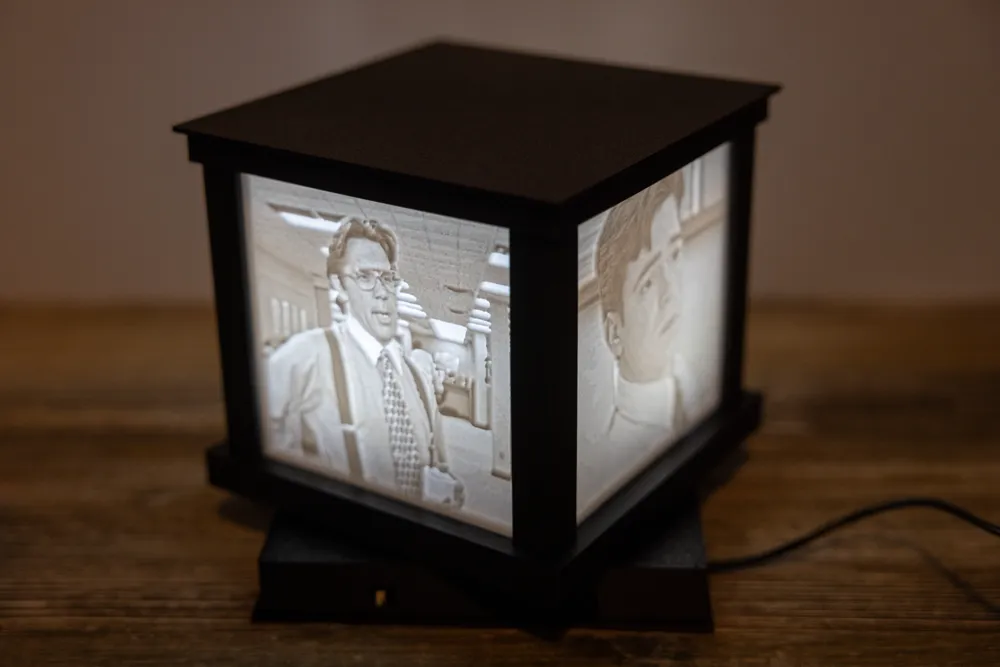

A square lithophone light box that rotates. This makes a great gift. Do not use PolyLit PLA Pro for the lithophanes as it won't work (recommend Sunlu White personally).
See assembly guide for full instructions
Non-3D Printed Items Needed:
- 4 pictures (cropped 1:1 ratio preferably)
- Maker’s Supply Electronics Bundle – ZH038: https://us.store.bambulab.com/products/makers-supply-electronics-bundle
- N20 Single Shaft Worm Gear Motor (1PCS) – LA008: https://us.store.bambulab.com/products/n20-single-shaft-worm-gear-motor
- BT2 Button Head Cap Self Tapping Screw (BHCS) – AA213: https://us.store.bambulab.com/products/bt2-button-head-cap-self-tapping-screw-bhcs?id=42382276952200
- 4 White 3030-LED Board with SH1.0 Connector 5V – KB001: https://us.store.bambulab.com/products/3030-5v-led-board-with-sh1-0-connector
- Steel Deep Groove Ball Bearings 6004ZZ – EA041: https://us.store.bambulab.com/products/steel-deep-groove-ball-bearings-1?id=42504746172552
- Wall Charger/USB Plug
- *Optional: USB Extension Cord (the cord in the bundle is very short)
- *Optional: Smart Plug (You can set an on/off schedule for the light)
3D Prints:
Plate 1: Base; 1 needed
Plate 2: Base Cap; 1 needed
Plate 2: Motor Cap; 1 needed
Plate 2: Pin; 4 needed
Plate 2: Gear; 1 needed
Plate 3: Rotating Base; 1 needed
Plate 4: Frame; 1 needed
Plate 5: Lid; 1 needed*
Plate 6: Lid – Hearts; 1 needed*
Plate 7: Lid – Paw; 1 needed*
Plate 8: Lid – Wedding Bells; 1 needed*
Plate 9: Light Mount; 1 needed
Plate 10: Light Clip; 2 needed
*Only one of the 4 Lid options is needed
ItsLitho.com Settings:
Shape: Plane
Width: 110mm
Height: 110mm
Min Thick: 0.8mm
Max Thick: 5mm
Depth: 4mm
Angle: 45 deg
Mm per Pixel: 0.1mm
Preview Model: Native
Other Lithophane Light Designs:
Lithophane Box: https://makerworld.com/en/models/653699-lithophane-box#profileId-580553
Square Lithophane Light Box (Plug in): https://makerworld.com/en/models/646555-square-lithophane-light-box#profileId-572796
Square Lithophane Light Box (Puck light/battery): https://makerworld.com/en/models/1266694-puck-light-square-lithophane-light-box#profileId-1292578
Lithophane Ornament: https://makerworld.com/en/models/852346-lithophane-ornament#profileId-800766
