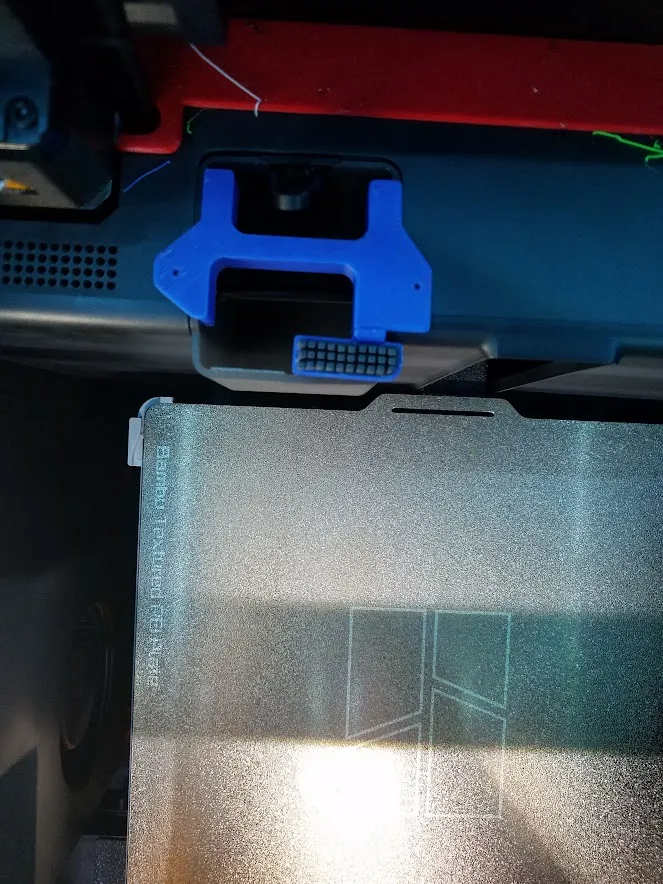

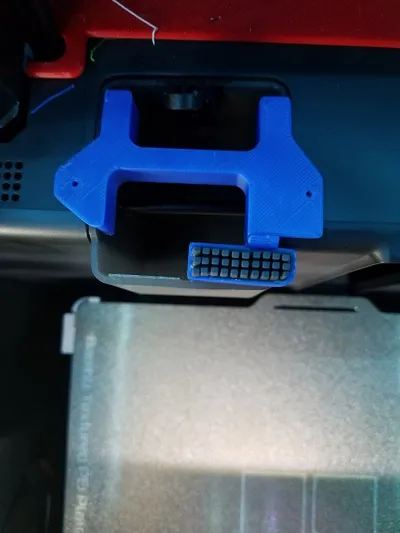

Hey Everyone! So recently I was doing a Multi-Color Print and it messed up because of the nozzle wiper, I was using a Modified version of the stock one, but it was bound to fail. So I went into Fusion360 and created this nozzle Wiper.

Why choose this version over others? Its only 8.09 grams of filament, this version DOESN'T Require the screw to mount it, just slide it in and its good to go.

Also, this Nozzle Wiper is the ONLY one I have found, that uses 10 Notches of the A1 Silicone Wiper, I wanted one to utilize most of the A1 Silicone Wiper.

I printed mine in PLA, which is because, I only print PLA and PETG, meaning that usually, it won't be too hot with PLA, but for PETG, I have a Glass Riser on mine so it allows hot air to flow out. I recommend you print this in PETG/ABS/PLA+ now PETG I recommend the most.

Hope you enjoy this as much as I did. If you run into ANY issues, contact me ASAP. I will try to get back to you within 1 day. If you think that something should be fixed/updated then let me know, I'm already working on a Version 2.

Also, please most your makes and rate this model:)

NOTE: Required items are A1 Silicone Wiper Link Down Below, and some sort of Super Glue, I used Gorilla Super Glue Gel. (If you do not use glue the wiper will come off.)

A1 Silicone Wiper $5: https://www.amazon.com/YUYUEMI-A1-Silicone-Brush-Accessories/dp/B0DDQ18RRS/ref=sr_1_3?crid=354TCYOD9EOA8&dib=eyJ2IjoiMSJ9.tStwfryw-DSWfRubFFlRWzIFEz54WY7Z3VyKTlCKxdVGnvtvqTBdR2JoJe-xXSqfZWJtHAqHOdKw4dzAELNP09UyCiPtiGmvFPNqVg-1FXFpxMkewDwx85h4_N3AnkboIzii4m5PgBaQLVl7rZY5XAh9Nhf7Dhks_vmfC6HF63KIwv3eonp1FcMWcDlDTBRU-JKpoC8d2lVeRt68yzEm82UhUhC1z3TZeJ7itA4Z45Y.TXSKriQ4ud0p3V8kqdltx5rd79OqV3ooCITB4lDl2c8&dib_tag=se&keywords=A1%2BSilicone%2BWiper&qid=1741366728&sprefix=a1%2Bsilicone%2B%2Caps%2C307&sr=8-3&th=1

Gorilla Super Glue Gel $14: https://www.amazon.com/Gorilla-112010-Micro-Precise-2-Pack/dp/B0B5YHL18C/ref=sr_1_4?crid=137TW62A18KUM&dib=eyJ2IjoiMSJ9.6cHwkKmhZOQs9wyppMVKH0evDx8gJe4frXK73ercaNudCNJvNnMdkda_l7-G7v4jumZkAFlQmWgRGk6QoOD5TeuRThfQvlWP14YfdCzc5KqjW9JtDNAmyO6vYl72NYvp448Awe57hto4-_RBwDibedhOoMLO1UwEJhvvRzcAPbxN73_gQcIbmAuFIeRtW9wCG86NKBsPBJ0RQnDdtoZhH5be4_6nK19K5XRG9WtPkB0.In-Z0RBNfLsDuNiUhJFbblym75l9RBmrNVJbefCtVME&dib_tag=se&keywords=Gorilla+Super+GLue+Gel&qid=1741367223&sprefix=gorilla+super+glue+gel%2Caps%2C301&sr=8-4

(Takes longer to settle but will have a stronger hold than most others) JB Weld $8: https://www.amazon.com/J-B-Weld-50139-Plastic-Adhesive/dp/B01IBOK7FE/ref=sr_1_5?crid=30ZT74TZDSOW3&dib=eyJ2IjoiMSJ9.NSLeHOPAo3nF9uX1umK-_FsRT0sAW6TniItGdEy4emiOQQ04dtgtwOnhg77WQAiqRBf_LQSAl7fxeYw1PRWmcKTG71x3qYDnt0vXz4-12jgtA0PGDRDQ1A_2YnvrH8kVfrz0B5PVLmWtZEdQVKLFyYNGgHefVAkKW8aWZYwx4rAAZH7Ag1ehky2hDOu5BYv2l8n25IfP0PXbG4gwu6R4hRXIrbGFZiZqz3fBGQsoENk.flsoQS0UAGE3fmjPzPvyboMEeMfPDa95TvFHBuqNTGQ&dib_tag=se&keywords=JB%2BWeld&qid=1741367242&sprefix=jb%2Caps%2C818&sr=8-5&th=1

Boost Me (for free)

Please consider boosting me:))) Its freeeeee.

upgrade for p1sp1px1c

must print

Bill of Materials

List other parts

A1SiliconeWiper x 1
SuperGlueOfYourChoice x 1: AnySTRONSuperGlue

Download BOM

Comment & Rating (33)

@Alex.Vikingo

maybe you have some different printer but my can't put inside, after i change design. cut 0.7mm from each side and now fits.

(Edited)

The designer has replied

@ZamGod_Printing

So first, you have to slide the very back corners in, then push it in. Its on the GIF.

@Alex.Vikingo

Replying to @ZamGod_Printing :

gap is 47mm , but your model is 48.5mm, also silicone platform is to close, must be 5mm more far.

@ZamGod_Printing

Replying to @Alex.Vikingo :

Your saying it needs to be 5mm more far for what exactly? I’ve had other people said it works fine.

@Stradivyrus

Print Profile

Draft Quality (Sized Fixed)

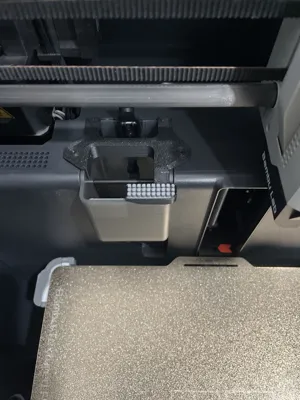

fits like a bug in a rug! not too loose not too tight, perfect fit. sized perfectly for a P1S bought in end Nov 2024

The profile uploader has replied

@ZamGod_Printing

Perfect 👌🏾

@BananaSam

the screws used in other models are just the screws already there....

The designer has replied

@ZamGod_Printing

What do you mean by this?

@BananaSam

Replying to @ZamGod_Printing :

The mounting screws are already there. just use the provided or appropriate hex key and unscrew, place wiper mod, screw back in like on any other mod that uses screws. guaranteed stability and not coming loose and allows for custom g-code wipe sequences to run reliability due to lack of play. Kind of like how the screws to hold the provided spool holder on the back already has it's screws there. I had actually been in the market for a model exactly like this one, mounting hardware free, until I realized the hardware was there to begin with

(Edited)

@ZamGod_Printing

Replying to @BananaSam :

I see what you mean now, I just decided not to use screws on this, if you want I can make a version where the screw wholes align, as of right now, I am running a the wiper printed in pla and no screws to see how long it lasts to show you guys. Also, some people such as myself find that it fits perfectly in there without any needed screws.

@blastazar

Printed and installed it. Works great except that on my X1C after the first layer inspection the hotend doesn't go back exactly above the chute but above the wiper where it extrudes a bit before restarting the print. Is there a fix to this pb ?

The designer has replied

@ZamGod_Printing

This mod doesnt mess with G code, my printer does that too I believe.

@blastazar

Replying to @ZamGod_Printing :

Yes I understand that the mod doesn't modify gcode but maybe there is a quick gcode mod to make in the settings to prevent this small issue ?

@ZamGod_Printing

Replying to @blastazar :

Depending on your settings it might be because of brim, purge tower, speed, purge etc. So I'm honestly not sure if there is anything to fix it.

@Lemagenoir68

Print Profile

Draft Quality (Sized Fixed)

Excellent idea, but it doesn't fit the opening I have a P1s Unfortunately

The profile uploader has replied

Show original

@ZamGod_Printing

Can you describe it more? There is a Specific way you need to put it on.

@Lemagenoir68

The piece measures 48.34mm The hole measures 47.1mm

Show original

@leomenz

Print Profile

Draft Quality (Sized Fixed)

The dimensions are incorrect The part is too wide and too long

The profile uploader has replied

Show original

@ZamGod_Printing

Would you like me to provide you a fixed version? Provided to me by another user, would you be willing to test it for me?

@SCHENDesign21

Boosted

Print Profile

Draft Quality (Sized Fixed)

nice design good fit works well

@LunarCVictorG

Print Profile

Draft Quality (Sized Fixed)

@databixler241

Print Profile

Draft Quality (Sized Fixed)

@Alex.Vikingo

Print Profile

Draft Quality (Sized Fixed)
