Wall Mount Can holder by Thinkofatime

Thinkofatime

Tools>Organizers

IP Report

Print Profile(3)

All

P1S

P1P

X1 Carbon

X1E

H2D

0.28mm layer, 2 walls, 15% infill

Designer

4.7 h

1 plate

4.8(39)

2nd Plate added with 67mm diameter for bigger cans

Designer

9.8 h

2 plates

4.9(21)

4x 69mm Diameter holders 0.28mm layer, 2 walls, 15% infill

Designer

5.2 h

1 plate

5.0(7)

Open in Bambu Studio

Boost

812

1826

167

1 k

513

Released

Description

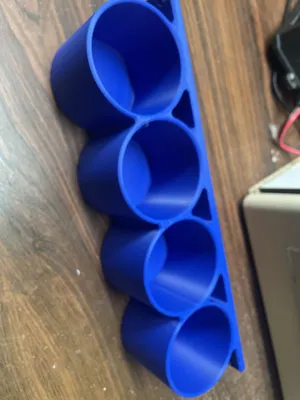

A variation of previous can organisers. This one is deeper to allow smaller cans to be stored without risk of toppling off the shelf. Printed with two walls an 15% infill seems plenty strong. just a few screws to fix it to the wall.

Additional Note:-

Based on some feedback relating to storing bigger cans than 64mm (66mm) I added a second plate with the bigger size of 67mm.

Some more feedback received requesting a full size can holder. The design is now modified to add a profile with 69mm diameter can holders that will cater for bigger Oil cans and also paint aerosols with wider bases.

Comment & Rating (167)

@Big_Rocket_Guy

Boosted

Print Profile

0.28mm layer, 2 walls, 15% infill

Part printed perfect in Bambu PETG-HF and is rock solid. Only issue is that I didn’t recognize the slimmer-style cans in the photos before printing the profile and none of my WD-40 cans fit! (I suppose that one is on me for not double checking dimensions…) It’s a quality part that seems much too good to toss, so I’ll just have to find something else to keep in it.

@Thinkofatime

Thanks for the feedback. what diameter are the base of your cans. it is a simple task to increase the diameter slightly and perhaps a second plate to the design catering for bigger cans.

@lex69

Boosted

Replying to @Thinkofatime :

Hello, thank you very much for sharing. Your supports are excellent but a little too small. I need a 66mm interior diameter for a spray can

Show original

@Thinkofatime

Thanks for the feedback. I added a second plate that has a slightly larger diameter to cater for the larger cans you mention. The new plate has 67mm which is very close to the maximum plate size for a 4 can version.

@TheoM99999

Boosted

This print is incredibly strong and well design. Unfortunately even the larger version does not fit paint spray cans.

The designer has replied

@Thinkofatime

Hi Can you please tell me the diameter of the can base? A few people have mentioned the same issue to me. One option is to scale the print a little bigger in Bambu studio. However, I can perhaps increase the diameter a little more and still make the model fit on the print bed. If so, I can add another profile to the design in the form of another plate. All feedback is welcomed.

@TheoM99999

Boosted

Replying to @Thinkofatime :

The can measured 66.7 mm. Your print says it's 67mm, must be outside diameter. Should design for a 69mm inside diameter. I'm going to try my hand at it myself.

@Thinkofatime

Replying to @TheoM99999 :

69mm print profile is now added and will hopefully cater for your requirements.

@BorysMan

Boosted

Perfect idea for my use!

The designer has replied

@Thinkofatime

Thank you for the feedback and I am happy you found it useful.

@antonino.magnif

Print Profile

0.28mm layer, 2 walls, 15% infill

Incredibly convenient to find its place in my workshop, it prints flawlessly, thank you for sharing

Show original

@Thinkofatime

Thank you

Show original

@thekayfamily

Boosted

Print Profile

0.28mm layer, 2 walls, 15% infill

doesn't fit larger cans but a nice holder.

@Thinkofatime

If you try one of the other print profiles you will get one to fit bigger cans. The 69mm diameter one is in response to requests for a holder for bigger cans such as paint aerosols and large wd40 cans. Glad you like the print.

@Big_Rocket_Guy

Boosted

Print Profile

2nd Plate added with 67mm diameter for bigger cans

Just what I needed! Printed in BL PETG-HF, came out perfect. Most of the aerosol cans I have laying around like the WD-40 and Rustoleum pictured are necked-in at the bottom. When I drop them in they fit so satisfyingly well they slowly float down to the bottom of the cup as the air escapes from under them. Some straight-body cans where the top/bottom seams are a larger diameter may require some model scaling (if it will fit on the buildplate), so just check your cans before you print.

@Thinkofatime

Excellent. Glad it worked out for you.

@dominzk

Boosted

Print Profile

0.28mm layer, 2 walls, 15% infill

gut geworden

@Thinkofatime

Thank you for the feedback

@user_1381351991

Print Profile

0.28mm layer, 2 walls, 15% infill

@Thinkofatime

Thank you for the feedback

@Rusky

Hello - If you're in the US most cans are ~67.4mm. If this impacts you - to save some time (and filament) you're going to want to modify OP's model to be ~70mm. Nice model though!

The designer has replied

@Rusky

To be clear, OP's new 67mm size won't fit standard size cans in the USA.

@Big_Rocket_Guy

Boosted

Replying to @Rusky :

The 67mm profile fit most of my spray cans perfectly. Printed again in BL PETG-HF. As long as the the can is slightly necked-in at the bottom so that the dome seam is roughly the same diameter as the can, it should fit nicely with very little play. Perfect for my use since I’ll probably mount it on the inside of a cabinet door or something. Props to OP for the upload!

@Thinkofatime

Replying to @Rusky :

Hi another print profile now added that caters for up to 69mm should address the issue you highlighted.

@lex69

Boosted

Hello, thank you very much for sharing. Your supports are excellent but a little too small. I need a 66mm interior diameter for a spray can

The designer has replied

Show original

@Thinkofatime

Ok. let me work on it. I received similar feedback from another person.

@lex69

Boosted

Replying to @Thinkofatime :

🥳❤️🥳

@Thinkofatime

Try the plate 2 design and it should work for you.
