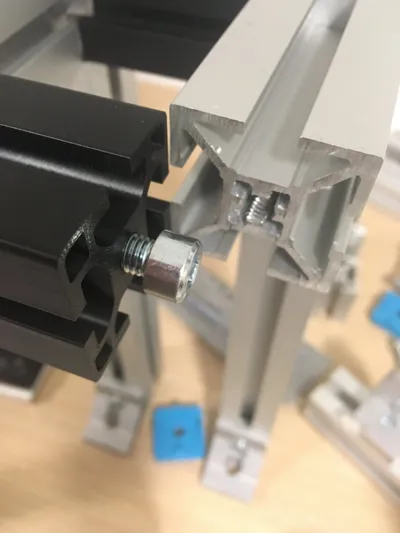

Aluminum-type grooved profile with 8 mm thread

Aluminum-type grooved profile

40x40 Aluminum Profile

Comment & Rating (6)

@dE3OB2

Print Profile

0.12mm layer, 4 walls, 15% infill

Functional design, but it would be more useful to have access to step.

The profile uploader has replied

@supermarketstud

Hello I do not understand what you are saying, could you please explain

Show original

@dE3OB2

Replying to @supermarketstud :

Sorry, unclear comment. I wanted to say that your model is well made: linear dimensions and thread in the hole. The only thing is that files in .stl format are difficult to modify compared to .step. I needed to extend one of the parts by 5 mm, and since a plane in .stl is a set of polygons, it is difficult to do in a few clicks. So I rebuilt the profile for this extra 5 mm =)

@supermarketstud

Replying to @dE3OB2 :

Understood, the part's length can be adjusted by modifying only the Z-height via the slicer Deselecting the box

Show original

@FMwonder

Boosted

Print Profile

0.12mm layer, 4 walls, 15% infill

I used pla basic , matte and pla cf all came out great
