SN-AK47: Snub-Nosed AK47 Blaster

A shell-ejecting blaster that can fire both 6mm BB's or printed projectiles. My own weird mashup of a Draco Ak with and ACR lower receiver. You may want to use a spring with a smaller wire diameter if you are making this for a child, both for ease of use and safety

ASSEMBLY VIDEO:

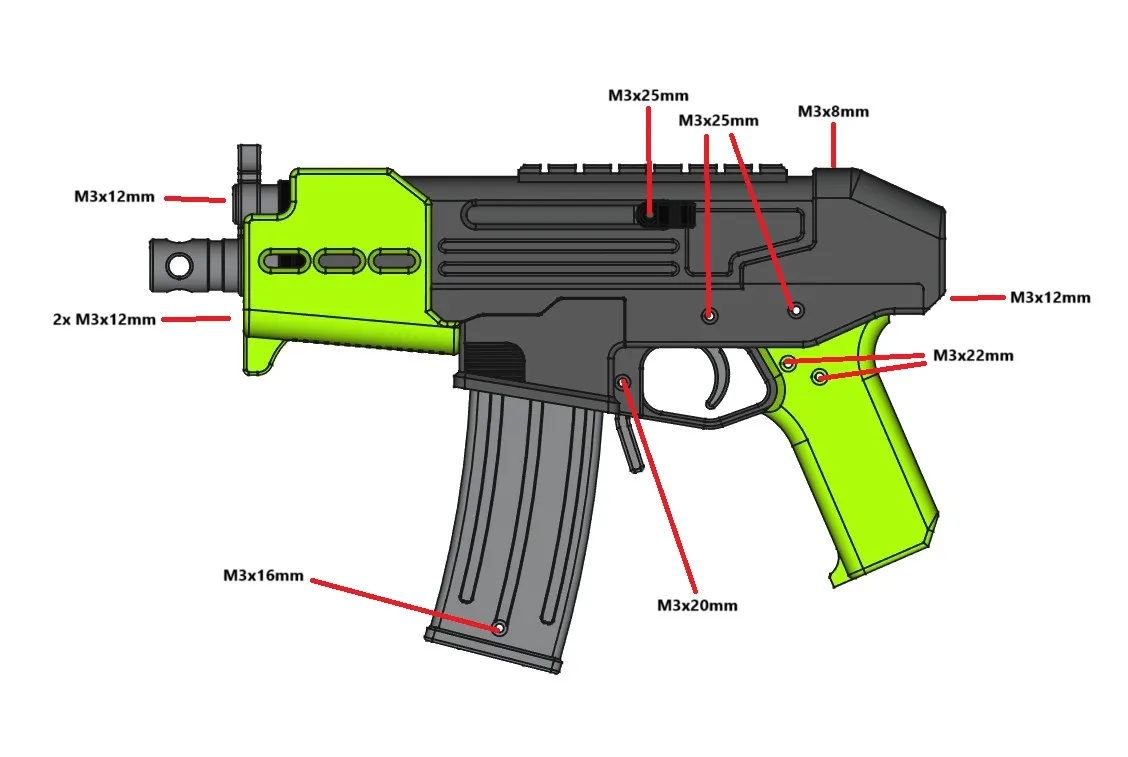

SCREWS:

Length:	Number Needed:
M3x8mm	1
M3x12mm	4
M3x16mm	1
M3x20mm	1
M3x23mm	2
M3x25mm	3
M3 Hexnut	12

SPRINGS:

Wire Diameter	Outer Diameter	Length	Purpose
0.8mm	10 mm	110 mm	Bolt
0.8mm	10 mm	95 mm	Striker
0.8mm	10 mm	120 mm	Magazine
0.5mm	5 mm	20 mm	Magazine Latch
0.5mm	5 mm	20 mm	Striker Latch
