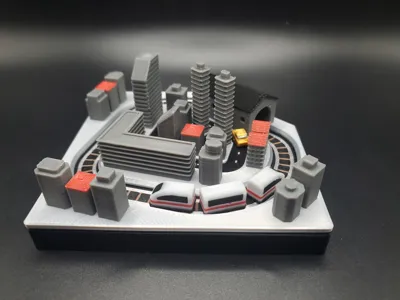

Mini Train - Functional City Diorama

After the much liked first Mini Train Diorama: https://makerworld.com/en/models/1087051 i quickly decided to make a little series. this is the second Mini Train. A city design with an modern train and cute cars on the streets.

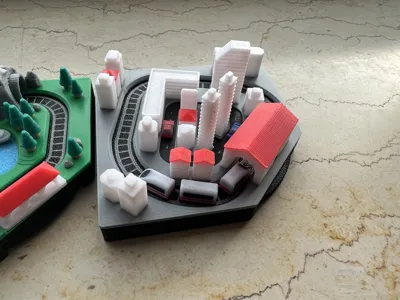

The new ICE styled train is compatible to the previous mountain design.

This is a lovingly designed train diorama with an exciting function of letting the train drive.

The train runs by turning the hand-wheel on the outside, which is controlled by magnetic sliders. The little cars on the streets moves as well.

All printed parts are designed with minimal color changes to reduce waste.

→ Requested Motorization is done!

More is coming… stay tuned….check the “Mini Train collection” and leave a follow👍

Printing:

Note that some parts are very small. Good adhesion is necessary!

Following PLA Basic Filaments are used

Jade White

Black

Silver

Brown

Red

Blue → car only

Yellow → car only

Other colors are possible of course, look what you have in stock.

I think it could be done with single color, if you want to color from hand.

I printed with a 0,4mm nozzle! Iam very pleased with the result but you can try a 0,2 nozzle as well.

Assembly:

→Tiktok →Insta

You need 9pcs round 4x2 magnets & 3pcs 3x2 (Or stack 3x1) magnets for assembly.

**Insert Magnets in the train and cars all with same polarity (4x2 for train / 3x2 for cars)**

**And insert 6 magnets in the 6 pins the opposite direction! The Pins must attract the train and cars**

**Insert the pins,use the train and cars to hold them in place.**

**Arrange the pins with train and cars approximately as shown in the picture**

**Press the wheel into position so that all pins are captured.**

**Use the little connectors to glue the terrain on top**

I hope you like this little project.

If you want to support me, you can simply follow, boost & like the model.

You want to sell printed parts from my designs? Commercial license you can get here:

https://www.patreon.com/BamBamDesign/
