Introduction

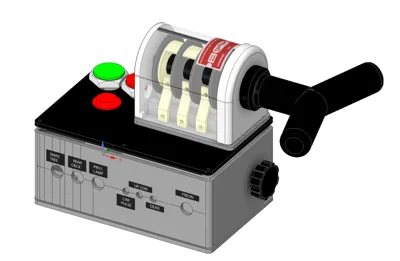

I designed this to fit on the center console of my '91 S10, complementing my scaled-down Flux Capacitor and Time Circuits. While it’s not screen-accurate, it’s as close as I could get while still being happy with the result. The bottom case pictured is a smaller version than the STL available for download, as I wanted mine a little smaller so not to get in the way of shfting.

I'm still making tweaks, so future updates may improve the design. In a later release, the handle will power the red and green LEDs.

The handle was initially printed in black resin, but the quality wasn’t great. I ended up using my FDM printer, and after some post-processing, it turned out much better.

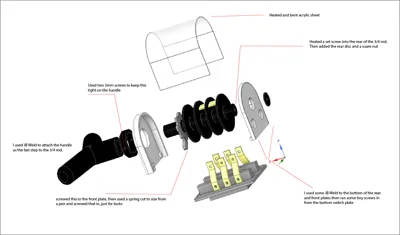

I drilled holes into the switch plate stl file and bolted it to the lid instead of gluing it down.

I provided a scaled down label for the Dayton label. I printed this on self-adhesive vinyl, then found self-adhesive laminate to cover it. I also used a very thin double-sided tape to stick it down as the vinyl adhesive with the laminate wasn't strong enough


Printed in PETG with four walls and 20% infill. I've also included an acrylic mold to help shape the acrylic properly.


Video snippet: Ozzy & Dad Get Creative (@ozzyanddad) | TikTok

Video snippet: Facebook

 BOM

• 1 mm Acrylic Sheet (Dayton Cover)
  • https://a.co/d/b3j958l
• 4 Larger Toggles
  • https://a.co/d/7y9rYcE
• 3 Smaller Toggles
  • https://a.co/d/eqTEeWT
• 3/4 in Rod (inside of Dayton Switch)
  • https://a.co/d/1X12ens
  • Will need to cut this to size
• .5 mm Brass (for inside the Dayton Switch)
  • https://a.co/d/b4Kuoi3
  • I provided STL files you can print and paint copper/brass color, but I used copper cut to shape in my version
• Red Push Button
  • https://a.co/d/cJ1kd8N
• Green/Red Leds
  • https://a.co/d/2GcyWzk
• 1 or 2 mm screws (optional to mount the front and rear pcs to the switch base, and acrylic to the rear)
• 3 mm screws various sizes
• 3 mm washers
• 3 mm nuts
• 1 spring from inside of pen
• Wire (black, I used red)
• Ring Terminals (blue and red)
• I used a Rotex Label Maker found on Ebay
• I used red and black labels for the Rotex
