Description

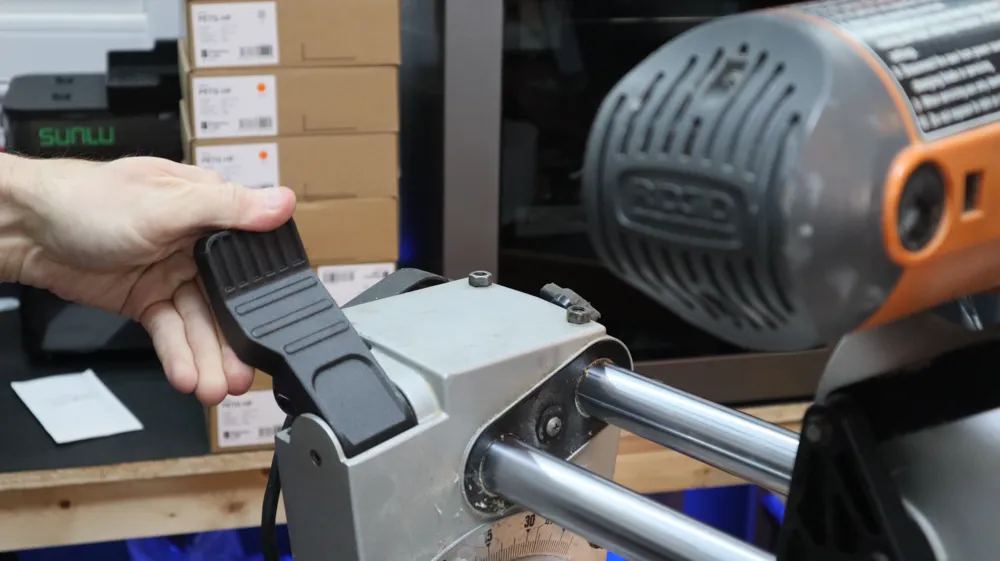

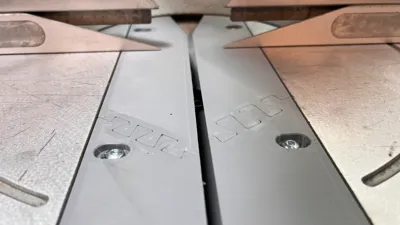

This is a set of repair and replacement parts for the Ridgid MS1290LZA Compound miter saw, the video below shows how I created them even when I didn't have the full original part. The throat plates are assembled with my dovetailed connection, double scarfed for maximum surface area, they should be glued but with a tight enough fit, they will work without as well.

Enjoy!

Comment & Rating (1)

@Tosom

Print Profile

0.2mm layer, 8 walls, 15% infill

Template is great! Fits better and is much stronger than the original part. Screw holes even all match up! Might glue together but honestly it fits really tight with dove tails. Hopefully won't need again, but storing away in case we do. Thanks!
