Description
This is the first result of a complete Overheadpanel of the Boeing 737. Here I provide you with the fuel panel.
Boost Me (for free)
Support me here!
It is possible to install a backlight to illuminate each lettering and the "lines". It is best to use 5V LED strips for this.

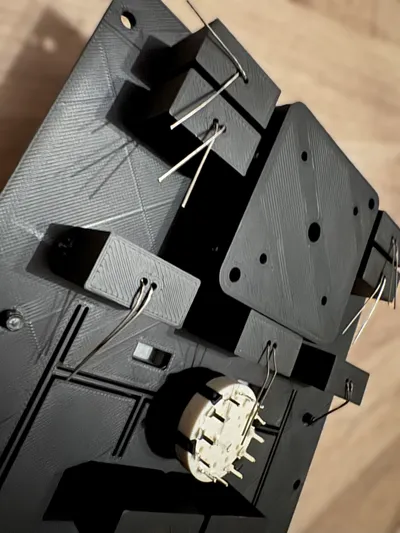

Each indicator light has its own LED (5mm), which means the message texts are illuminated correctly. The pointer of the scale can be operated using the holder with a Nema17 stepper.
The print was only tested on the smooth plate, it is very important to check the first layer to ensure good lettering. I recommend a 0.2mm nozzle for the scale and all indicator lights; I have stored a pressure profile. This enables better lettering on small areas.
All other panels will follow as soon as I have finished and tested them.
Required for installation:
-6 ON/OFF switches
-1 rotary switch with 4 positions
-M4 screws+nuts
-Nema17 stepper
-13 5mm LEDs
The connection to your simulator is done via the Mobiflight program, a ready-made program for this may follow if I find time.
