Description

New Version Alert!
New! We’ve updated our design to include 6x2mm magnet holes for even more versatility.

The Dicebox XL – Your Ultimate Gaming Companion
Whether you’re a Warhammer 40k, Age of Sigmar, or board game enthusiast, the Dicebox XL is designed with you in mind. As a competitive Warhammer 40K player, I crafted this box to feature convenient compartments—each holding 10 16mm dice—so you can quickly count and roll without missing a beat.

If you want to print this on a A1 Mini please take a look at the:
Dicebox Mini with removable tray

Enhanced Storage Options
The XL version boasts two extra compartments perfect for storing tokens, counters, or any other gaming accessories. Plus, by simply removing the tray, you create a handy rolling box that keeps all your dice together during gameplay.

Double (or Triple) Stackable Design
Running out of space? No problem! The box includes magnet holes on the bottom, allowing you to securely stack multiple boxes—double or even triple your storage capacity with ease.

Magnetized Lid for Ultimate Convenience
Worried about where to put the lid during the game? Just attach it to the bottom of your box, and it will magnetize in place—preventing it from falling, getting lost, or interfering with your play.

Components

Box
The main container features eight slots for 8x2mm magnets, connecting seamlessly with the lid on both the top and bottom. For added protection, you can insert a 2mm neoprene liner to cushion dice rolls. We also offer a second profile with raw STL files for the 6x2mm version.

Lid
The simple yet effective lid comes without a logo in its basic version and includes four magnet slots. It’s designed to be printed with the top part directly on the build plate, giving you the freedom to experiment with smooth, textured, or 3D effects. Logos or text can be added using Bambu Studio. (Note: The version featured in the screenshots is not yet available via MakerWorld.)

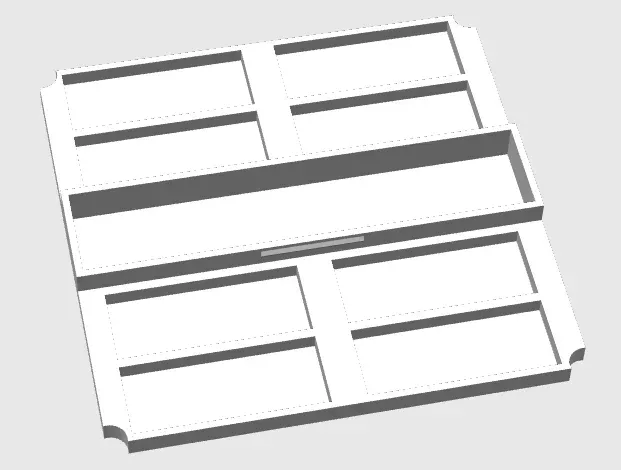

Tray
Choose between two tray versions:

Version 1: Six compartments for 10 16mm dice each, plus two large compartments for accessories.
Version 2: Eight compartments accommodating 80 16mm dice in total, with one additional long compartment.
Browse my other uploads for more layout ideas!

Liner
I offer laser-cut neoprene mats for the perfect dice liner. A PDF file is included so you can order or make your own liner if desired.

Assembly Instructions

To assemble your Dice Box, you’ll need a minimum of eight 8x2mm magnets—four for the box and four for the lid. Ensure you magnetize the lid using the opposite poles to the box magnets for proper attachment. The parts fit with a margin of about 0.2mm, so a small drop of superglue will secure them together nicely.

You can optionally add 4 extra magnets to the bottom of the box, this allows you to stack and add the lid to the bottom of a box.

Dimensions:

Box: 21cm x 21cm x 2.4cm
Lid: 0.3cm thick
Combined Height: 2.8cm

Commercial License Notice

This is a MakerWorld Exclusive model. Without prior authorization, you are not allowed to sell this model. You may print it for personal use.

If you prefer not to print it yourself, you can purchase it from my Etsy store: WargearDiceBoxes

Show Your Support!

Boost Me (for free)

If you like this design, please boost me—it’s completely free and helps me continue creating these models!

Check out my other models:

Warhammer 40k Deployment zone Tokens

Warhammer 40k Hunter-killer Missile Token
Warhammer 40k Grudge Token

Warhammer 40k Astra Militarum Order Tokens

Warhammer 40k Measurement Sticks

Warhammer 40k Drukhari Pain Tokens

Warhammer 40K 40mm Objective Markers

Warhammer 40K Aeldari Agile Manoeuvres Tokens

boardgame accessories

tray

Documentation (1)

Other Files (1)

Outline for liner.pdf
