Description:

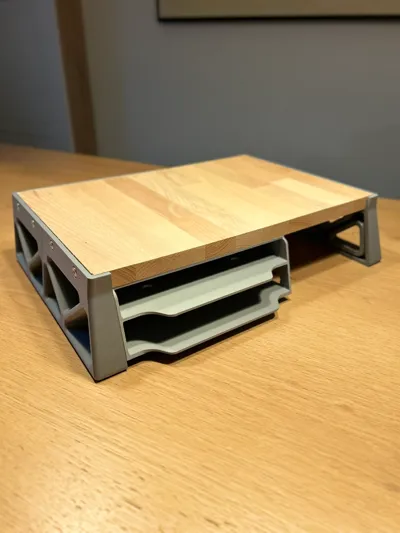

This monitor riser comprises a robust oak wood plate and two sturdy supports (left/right). The supports can be affixed to the wood plate in two ways.

• Version A: Lateral attachment using M6 cylinder screws
  • ✓ Premium aesthetic achieved through metal screws
  • ✗ More complex assembly due to wooden bushings
• Version B: Lateral attachment using wood screws
  • ✓ Quick & easy assembly

Further details are provided below.

Optional: Storage Tray:

An additional storage tray can be mounted beneath the wood plate (attachment using 4 x 16 mm wood screws).

It consists of two interlocking parts and offers:

• Dual compartmentalization in DIN A4 format
• Matching design to the supports
• Space for documents, small folders, or electronic devices (e.g., tablets, docking stations)
• Open construction for straightforward cable management

Height increase of 98 mm

Assembly drawing in the appendix

Wood plate dimensions:

• Thickness: 18 mm
• Depth: 270 mm
• Width: 400 mm (customizable)
• Suitable for: 17-inch laptop
• Plate drawing in the appendix (for Version A)

Supports:

• Each support (left/right) consists of two precisely fitting parts that interlock like a puzzle.





--------------------------------------------------------------------------------------------------

Screw Attachment Version A – M6 Cylinder Screws

• 8x M6 cylinder screws with M6 x 15 wooden bushings (Amazon link)
• Drill holes in the plate:
  • Diameter: 10 - 10.5 mm
  • Supports serve as drilling templates

Assembly:

1. Interlock supports
2. Position against the plate & mark drill holes
3. Drill with a 10 mm drill bit
4. Insert wooden bushings
5. Screw supports to the wood plate
6. Finished!

----------------------------------------------------------------------------------------------------

Screw Attachment Version B – Wood Screws

• 8 wood screws (e.g., 4 x 25 mm)
• Pre-drilling recommended (depending on wood type)

Assembly:

1. Interlock supports
2. Position against the plate and use as a drilling template if necessary
3. Screw together with wood screws
4. Finished!

-------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------

Notes on 3D Printing:

• Support: Required
• Infill: 15% infill
• Wall lines: 4 wall lines (3 wall lines also sufficient)
