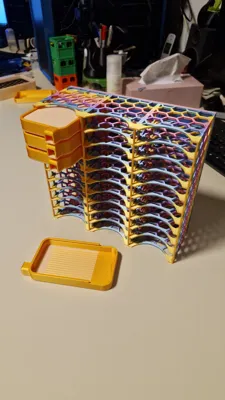

30mm Diamond Painting Garage with Magnetic Insert

Version 2 - 50% Weight Reduction

The full-material version (Version 1) of the garage proved excessively heavy, resulting in what I considered filament waste, so I created a “Light” version for my garages.

Garage Version 2 boasts approximately a 50% weight reduction compared to Version 1, significantly conserving filament.

Functionality, dimensions, and magnetic inserts remain identical to Version 1.

Printing Note: I have adjusted the overhang and bridging speeds, slowing them down for optimal bridge/overhang creation.

Suitable dimensions for trays fitting the garage:

• Width 70 mm
• Height 17 mm

My diamond painting trays are also available on my page or directly via this link: https://makerworld.com/de/models/1079761#profileId-1071315

The garage features recesses for magnets with the following specifications:

• Maximum 10mm diameter (recesses are square, measuring 10.3 x 10.3 mm)
• Maximum thickness 2mm (with appropriate tolerance)
• Magnets should be neodymium with at least an “N42” rating for sufficient hold.

For instance, I currently use these: https://www.amazon.de/dp/B06X977K8L

A pause should be inserted in the slicer at layer 19 to allow for magnet insertion. The slicer will show the holes as closed, but the pause is implemented at the beginning of layer 19, with the holes closing only at the end of layer 19.

Feel free to share any suggestions!
