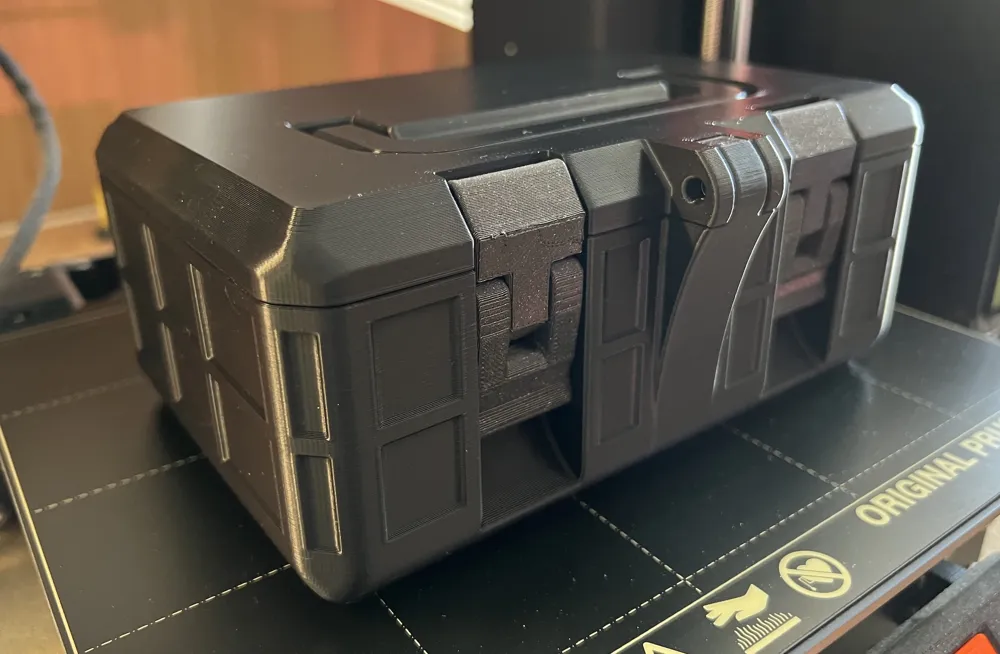

Cash Box Lockable Tamperproof Hinges And Latches by muddymaker

muddymaker

Tools>Organizers

IP Report

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

0.2mm layer, 2 walls, 15% infill

10.2 h

2 plates

4.8(17)

Open in Bambu Studio

Boost

710

1351

651

158

Released

Description

If you like my work and enjoy my models please consider leaving me a tip/donation, It helps me to continue creating awesome models for you for free.

https://paypal.me/muddymaker

You will need six M3x30mm socket head fasteners for the main box and lid, four 2x25mm stainless steel dowel pins for the over centre latches and stow-able handle.

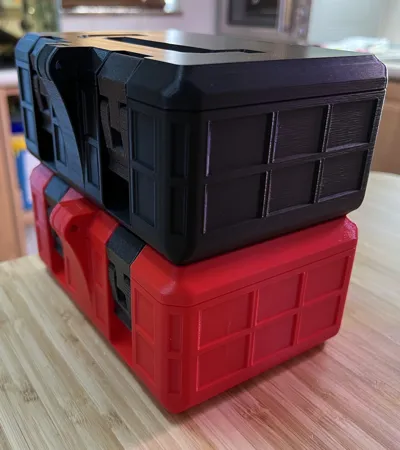

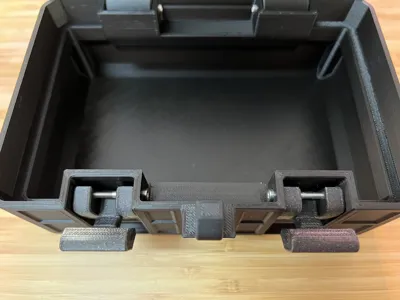

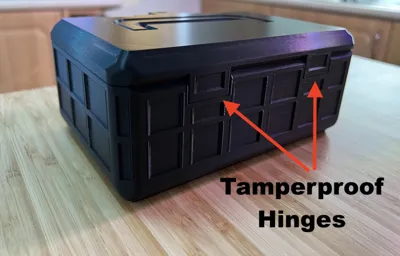

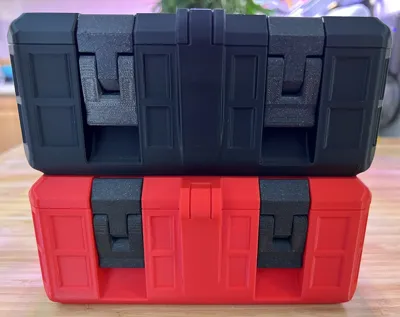

The hinges and latches are tamperproof due to the fasteners being on the inside of the box.

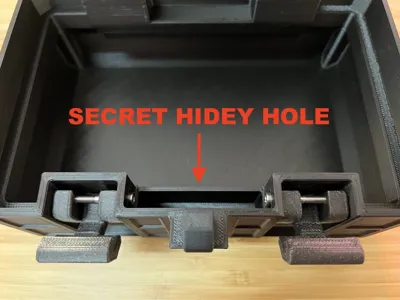

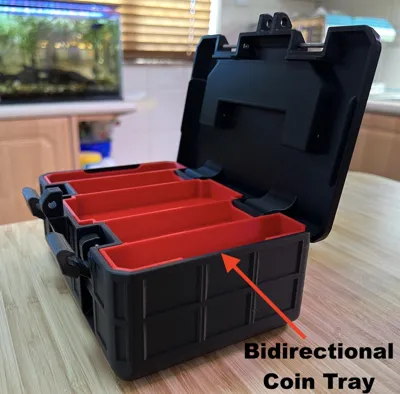

There is a secret hidey hole for emergency cash etc.

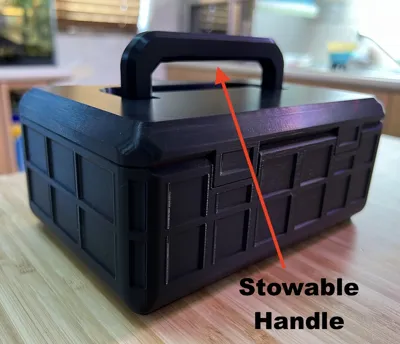

The lid requires supports for the storable handle section.

All the fasteners screw into the plastic. I used a ball end hex key to screw in the fasteners for easier installation. Do not over tighten the fasteners.

I used these dowel pins that can be found on Bambu Labs maker's supply section.

Internal dimensions are: L112mm W171mm H60mm.

External dimensions are: L121mm W180mm H78.

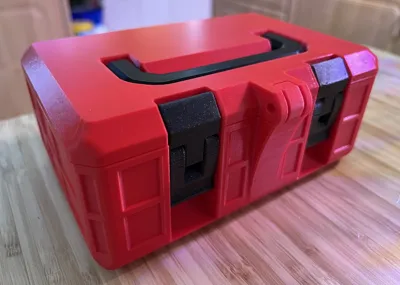

I recommend the latches be printed with a CF filled polymer or ASA,ABS @100% infill for strength and durability.

NB: All print files are in the correct print orientation.

Happy printing.
