Description

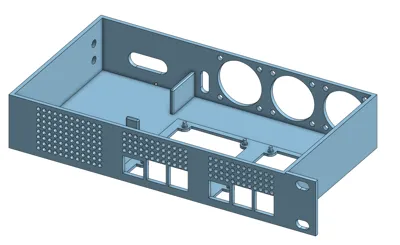

This 1U rack-mountable case is designed to house two Raspberry Pi boards, making it an ideal solution for server applications, networking, or cluster computing. The case offers a compact and efficient layout, ensuring easy access to ports and secure mounting in a standard 19-inch rack.



Key Features:

Fits Two Raspberry Pi Boards – Perfect for dual-board setups, such as failover systems or clustered computing.

Optional 3x Fan Slots – Enhance cooling efficiency with three 40mm fan slots for better airflow.

Dedicated Power Supply Slot – Designed to accommodate the power supply (https://www.amazon.pl/dp/B0CGZL4FWR) keeping your setup tidy and powered efficiently.

Rack-Mountable 1U Design – Standard 1U height, ideal for professional or home lab server racks.

Durable & Modular – Sturdy design with optional fan and ventilation cutouts for custom cooling solutions.



This rack case is perfect for home labs, network management, and compact Raspberry Pi clusters. Whether you need enhanced cooling, modular expandability, or a sleek rack-mountable form factor, this case provides the flexibility and functionality you need.



💡 Print your own today and level up your Raspberry Pi setup! 🖨️



Bill of Materials

Maker’s Supply Kits and Parts
List other parts
  • https://www.amazon.pl/dp/B0CGZL4FWR x 1: Power Supply

Buy Now
Download BOM

Comment & Rating (11)

(0/5000)

Good job! Would you mind sharing the CAD file, please? I would like to modify it so it fits my PSU and SSD. Thank you.
The designer has replied
0
Reply
Thank you! 😊 You can download the STEP files from the download section.
0
Reply
Replying to @Kisztof :
Thank you very much for that! Appeciate it. Design is awesome and easy to work with.
0
Reply
Replying to @Infantryman :
Thank you so much! I’m glad you like the design and find it easy to work with😊
0
Reply
What generation(s) of Pis will this hold?
The designer has replied
0
Reply

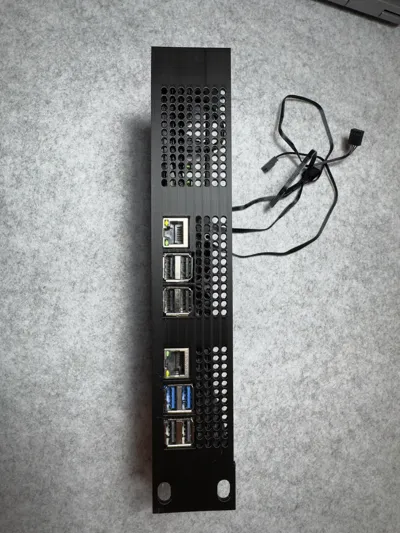

On the pics the Raspberry Pi 5 is on the right, and the Raspberry Pi 3 is on the left. Both share the same mounting points
0
Reply
Will there be a left side panel for a 19” rack here as well? The screw holes are already there
The designer has replied
Show original
0
Reply
Yes, I’ll be releasing it shortly!
0
Reply
Clever design!
The designer has replied
0
Reply
You’re welcome! 😊 I hope people find it useful and enjoy printing it! 🚀
0
Reply
What a great design. Outstanding work. I do have a question, though, as I’m from Australia. What size in millimetres is the PSU? I've found a similar unit on Amazon.com.au, but I’m wondering if it will fit. Unit: https://www.amazon.com.au/Charger-Charging-Station-Extension-Adapter/dp/B0DQPPZNB4/ (This unit is rated up to 240V input (standard here in Australia) Thanks for any help you can give.
