Clamshell Parts Box Gridfinity Tray by hargo

hargo

Tools>Organizers

IP Report

Print Profile(1)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

0.4mm nozzle, 0.2mm layer, 2 walls, 10% infill

Designer

1.4 h

1 plate

4.9(16)

Open in Bambu Studio

Boost

121

379

197

Released

Description

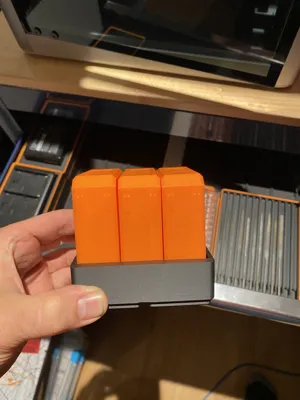

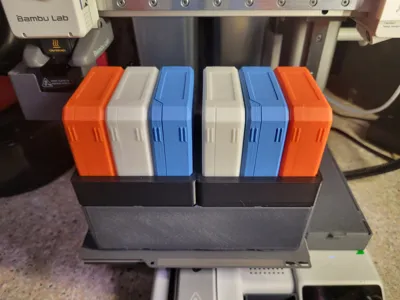

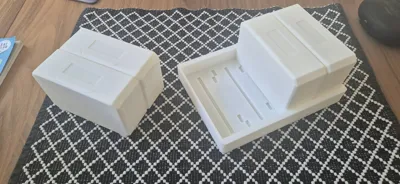

This tray is designed to store Clamshell Parts Box by Nick Johnson. Nick's parts box is great, the hinges are solid and the feet are the finishing touch. My question is how to efficiently store those boxes that I am going to print, I am now able to store 3 boxes in a 2x2 gridfinity bin. Due to space limitations, the 2x2 bins are not stackable and I created a 4x2 stackable tray for 6 boxes. This tray also work well with the Small Parts Storage Box by Josh-3D.

If you like this model, you may also interested in other add-ons that I created for the parts box. Click HERE to have a look.

Comment & Rating (23)

@user_502334735

Boosted

Thanks for this. Works great in my Ikea Alex gridfinity setup.

The designer has replied

@hargo

How many drawers you plan to fill-in? :)

@user_502334735

Boosted

Replying to @hargo :

I've got the four-drawer variant. The first three are shallow and the bottom is deep for files. I plan to do gridfinity on all three shallow drawers.

@cakeorglory

Boosted

I don't know if this is intentional but if you put one tray on bottom, one tray on top, held together with hairbands slotted into the feet... that precious cargo is going NOWHERE.

The designer has replied

@hargo

Thanks for sharing your findings. I wonder if Bambulab Shop sells hairbands, I can earn some commission :)

@PrestigeProto

Boosted

Print Profile

0.4mm nozzle, 0.2mm layer, 2 walls, 10% infill

exactly what i was looking for! thanks

@arturek

Print Profile

0.4mm nozzle, 0.2mm layer, 2 walls, 10% infill

Very nice design and size. I like that it is easy to print and different versions are available.

@user_502334735

Boosted

Print Profile

0.4mm nozzle, 0.2mm layer, 2 walls, 10% infill

@1stlayerliftoff

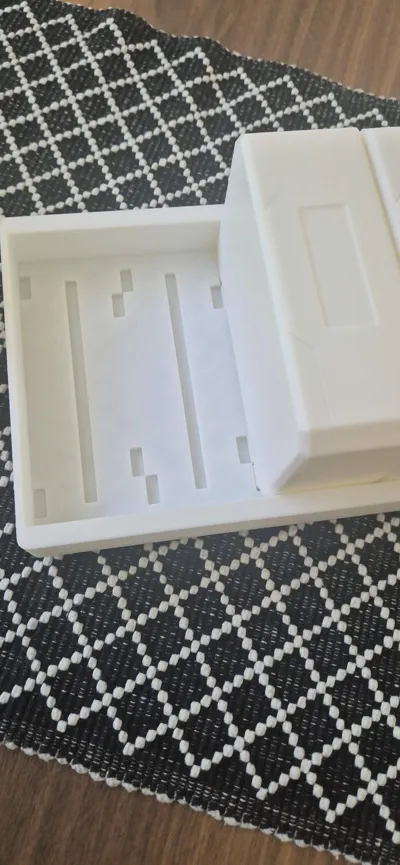

are the feet of the boxes supposed to line up with the holes in this tray? they don’t for me
