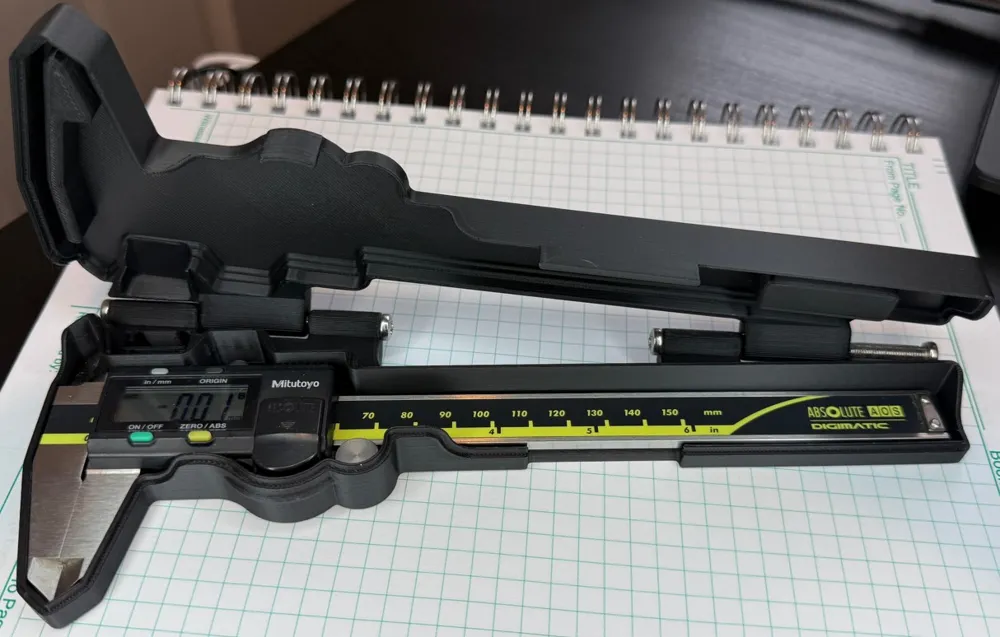

This is a compact tight-fitting case for a Mitutoyo 150mm caliper. It also holds two spare batteries. It can be printed without supports. Print shown was with a generic PLA, .4mm nozzle with .2mm layer height.

For the hinge I designed it to use 4 M4x35 fully threaded screws which screw in firmly and provide a firm and reliable hinge.

Update 02/26: slight change to remove an interference in the hinge. Also added V02 model which changed the location of the latch.

Mitutoyo

caliper

Comment & Rating (7)

@user_120292362

looks like a great model, would it be easy to generate a version for the 200mm caliper?

(Edited)

The designer has replied

@nennti

If I had a 200mm caliper model I'd be able to create a version for it. I'll see if I can find one to modify this model.

@user_120292362

Replying to @nennti :

cool. if its helpful here is a photo. looks likely identical to the 150 except for the length of the blade. on the 200, the blade extends 215mm and the overall length of the entire tool is 290mm.

(Edited)

@nennti

Replying to @user_120292362 :

I have created the model of a case that should fit your caliper. I'm 99% sure that your caliper isn't a genuine Mitutoyo for a number of reasons, but the model I created should fit yours. If you message me I can send it to you.
