Aqara Window Sensor
Aqara Window Sensor
Print Profile(1)
Description

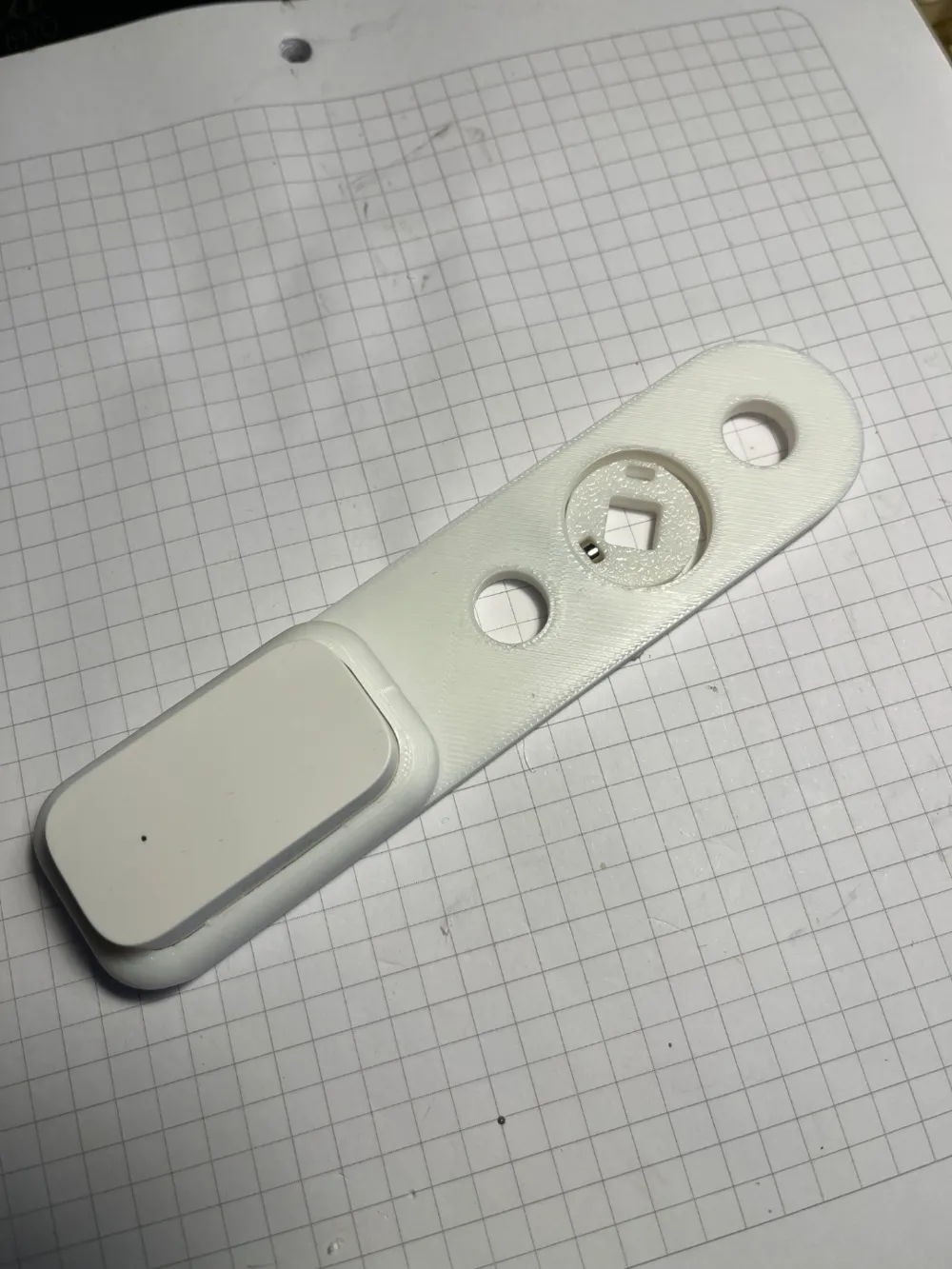

Housing for an Aqara window sensor to query a window handle.
Required Parts
Sensor : https://amzn.eu/d/559UxhI (Similar designs are also available. Cheaper on Ali Express)
Magnet: https://amzn.eu/d/ihLxsVa
For Conversion:
Open the sensor housing and desolder the reed switch. Caution, the glass body of the reed switch is very sensitive. If the glass body breaks, replace the reed switch with a plastic reed switch 2.5X 14 mm (https://amzn.eu/d/66EIb08). Position the reed switch outwards, as shown in the photo. A hole must be drilled in the sensor base and the circuit board holder. Do not make the extension cables too short, otherwise changing the battery will be difficult. I secured the reed switch and cables with some hot glue. Then insert the magnet into the magnet holder. The position must be adjusted on a case-by-case basis. In my case, the recess above the corner often works.
Bill of Materials
- AqaraFenstersensor x 1
- Magnet x 1: NEODYM4X2mm
- Litzendraht(dünn) x 1
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
