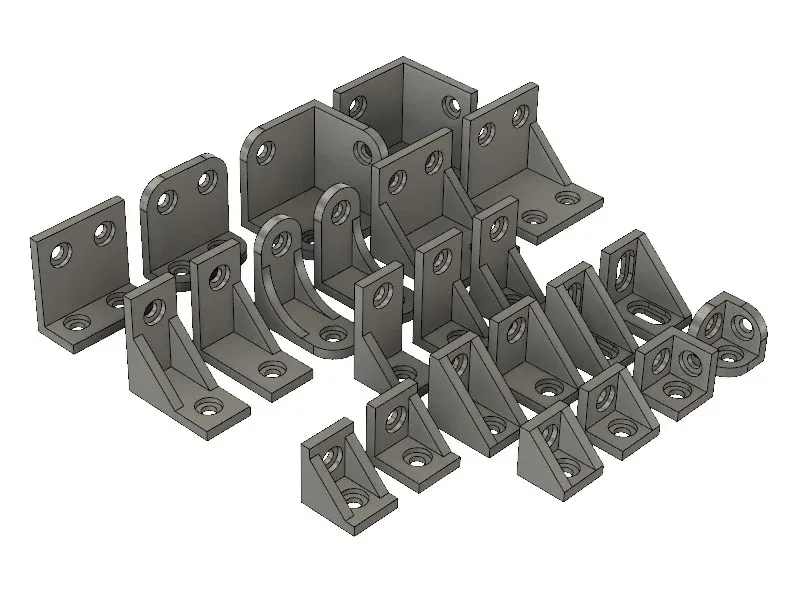

These are corner brackets designed to suit System 2020 (2020/2040) extrusion.



In order to mount the brackets you will need the appropriate amount of these:

  • M4x6mm socket head screws

  • M4 V-slot nuts


    Design by mce076 <https://www.thingiverse.com/thing:2957550>

brackets
corner brackets
2020 extrusion
