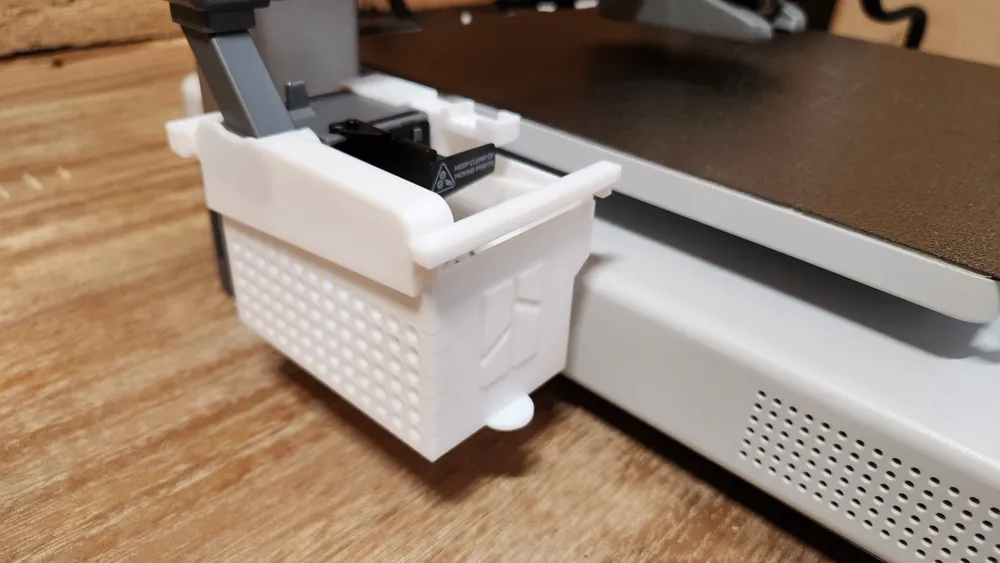

A1 Poop Bucket and Nozzle Purge Wiper

Designer

2.3 h

1 plate

4.7(20)

Open in Bambu Studio

Boost

158

325

327

204

Released

Description

If you prefer a version without a poop bucket, see linked model here.

https://makerworld.com/en/models/1078283#profileId-1071221

Version without Poop Deflector

https://makerworld.com/en/models/1112636#profileId-1109510

If you need A1 Mini see here.

https://makerworld.com/en/models/1109722#profileId-1106056

This is a critical modification to my last model to make big improvements. If you get small strings stuck in this wiper, it means its working. It's meant to clean the nozzle during filament changes, so be sure to clear filament from the wiper similar to the heatbed wiper at the back of the plate.

I kept having an issue with my A1 nozzle having little strings off of it when changing filament and after wiping. So here is a nozzle wiper attachment for the Bambu Lab A1 nozzle purge wiper.

See pictures and instructions below. All you do is print it, attach a cut piece of an A1 heatbed nozzle wiper, slide your new A1 Poop Deflector and Nozzle Purge Wiper onto the purge attachment, slide in the bin, and enjoy!

Print with tree supports on build plate only for the couple of overhangs, but not for the bin itself. The snap connections are a tight fit on purpose to fit snug. If you go to remove it, I recommend unscrewing the wiper assembly from the underside, then you can remove it more easily without jerking on the printer. I wanted the snaps to be super tight to not risk it jiggling loose during a print.

Attach a cut piece of an A1 Heatbed Nozzle Wiper

Attach the Nozzle Wiper

Attach the Poop Deflector

Attach connector link on the back

Attach connector link on the front

Slide in the Poop Bucket

Viola!

Bill of Materials

List other parts

A1HeatbedNozzleWiper x 1

Download BOM

Comment & Rating (45)

@aegA1

Print Profile

Removable Bucket Bottom

lok nice and usefull

The profile uploader has replied

@thesdotcarter

I'm glad you like it!

@t24_

Boosted

Print Profile

A1 Poop Bucket and Nozzle Purge Wiper

Great print! worked flawlessly. Printed in Sunlu PLA matte white

@user_696642818

Print Profile

A1 Poop Bucket and Nozzle Purge Wiper

fits great, bucket slides smooth

@MarauderJ

Here I am again and I bring good news 😊. As promised I printed the model and tested it, following my impressions: The model was designed and thought out really well, you can see that the designer is no stranger to designing a functional and easy to print model. The basket prints without problems although it has a track along the upper edge, which would normally require the use of supports but in this case the designer has found an ingenious solution, drawing the upper edge at a certain angle and thanks to the solution it prints easily. If you are interested in functionality and not aesthetics you can easily print all the components in about 1 hour. The design works perfectly and if I have to find a "flaw" it is slightly noisy during fast prints because it vibrates a lot more than my previous basket, but hey! A small price to pay if you want to have a cleaner that ensures you don't have annoying spaghetti hanging out of the nozzle every time. 5 stars deserved from me ⭐️⭐️⭐️⭐️⭐️

@BlueHairBob

Boosted

Print Profile

A1 Poop Bucket and Nozzle Purge Wiper

The profile uploader has replied

@thesdotcarter

that looks awesome!!!

@ChrSch076

Boosted

Print Profile

A1 Poop Bucket and Nozzle Purge Wiper

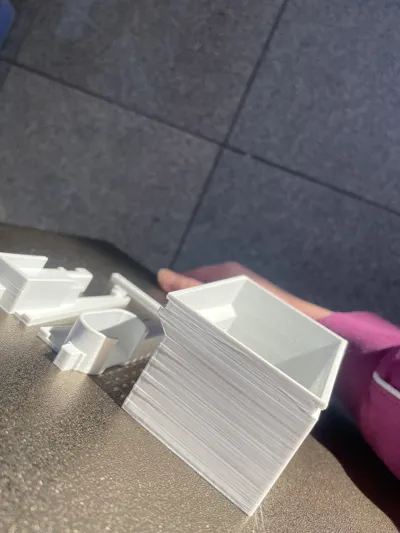

Other Issues:Very poor print
