Diamond Plate Switch And Outlet Covers by Wile E. 3D

Wile E. 3D

Household>Other House Models

IP Report

Print Profile(9)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

Single Switch

Designer

50 min

1 plate

4.9(14)

Single Outlet

Designer

44 min

1 plate

4.9(9)

Single Decora

Designer

42 min

1 plate

5.0(4)

Double Switch

Designer

1.3 h

1 plate

5.0(2)

Click to see more

Open in Bambu Studio

Boost

472

717

379

219

Released

Description

Boost Me (for free)

“Please. Have mercy. I’ve been wearing the same underwear since Tuesday.” —Neal Page, Planes, Trains and Automobiles (1987)

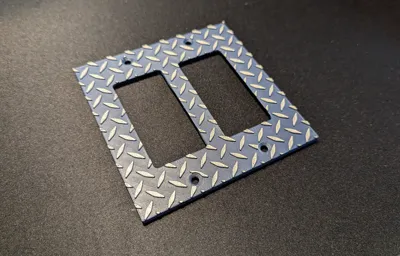

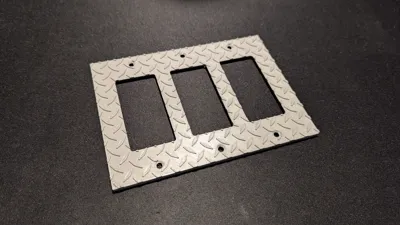

Here is a selection of diamond plate pattern switch and outlet cover plates. I'm providing each its own profile. They all have cavities on the back to provide clearance during installation. This make supports necessary, but Ive found them to be easy to remove.

You can find more wall plates in the collection of my hardware models here: https://makerworld.com/en/collections/3121074

Comment & Rating (54)

@user_1669736854

Boosted

Great print!! works fine this fits!! used an X1C. One question ... did you ever make a 4 plug with the diamond plate ... please? like the second pic?

The designer has replied

@gary.oldefendt

I just added a double outlet plate for you.

@user_1669736854

Boosted

Replying to @gary.oldefendt :

thanks!!!! I love these!!

@user_1419620526

Tf is this

The designer has replied

@gary.oldefendt

Looks like the first support layer.

@goodduck

It was OK didn’t exactly fit but good enough

The designer has replied

@gary.oldefendt

Could you give me a little more information on what the fit problem is? My test print was a perfect fit here, so I need to know what it is I should adjust on it. Thanks.

@user_955129581

Print Profile

Single Switch

looks like diamond plate

@chrisee

Print Profile

Single Decora

Awesome.

@Bandito24

Print Profile

Single Switch

This came out great! gonna do like 6 or 7 more for the garage, thank you so much for sharing!!

@user_1669736854

Boosted

Great Print!! works fine!!

@Dude1

Print Profile

Double Decora

@Garand

I printed the double standard switch cover. It came out great, but unfortunately the back cavity is not deep enough to clear the top and bottom screws that secure the actual switches to the wall via the brackets they are in. This causes the corners of the plate to stick out from the wall which isn't ideal. Still totally functional and I will still use it, but figured I'd mention it. Could be an issue just for me; I may try and tinker with it to make a deeper cavity.

The designer has replied

@gary.oldefendt

Thanks for the feedback. Unfortunatley switches can vary. The switches all have 'ears' on the top and bottom that can be removed by bending them back and forth with a pliers to give you more clearance. Or you could try using flat head screws, which is what the ones in my house have. Somewhere along the line they changed from flathead to roundhead. Or...I could change all the models. I might do that, but it will take me a while. Here's a pic of what I described trying to get more clearance.

(Edited)

@Garand

Replying to @gary.oldefendt :

Thanks for the tip, I took a closer look and I do have the round head screws. I may look for some more flush fitting hardware... I think that would probably completely solve or trivialize the issue. I'll make a note if I get around to it. thanks for your work.

@goodduck

Print Profile

Double Decora

It was all right doesn’t really fit on the switch is but it’s OK

Other Issues: Doesn’t fit

@gary.oldefendt

Do the switches not fit in the openings? Or are the screw holes off? I want to fix it, but need more detail. I used the manufactures dimensions and compared it to a cover and switches I have here and can't see where the problem is. Thanks.

@gary.oldefendt

I just checked it again. The outlets fit fine and the screw dimension is really close. The specification is 1.81 inches.

(Edited)

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
