Hyperboloid Hexagon Pen Holder Cup for Brush Pens
Hyperboloid Hexagon Pen Holder Cup for Brush Pens
Print Profile(3)
Description
This is a pen holder designed for Brush pens but could be used for just about any pen.

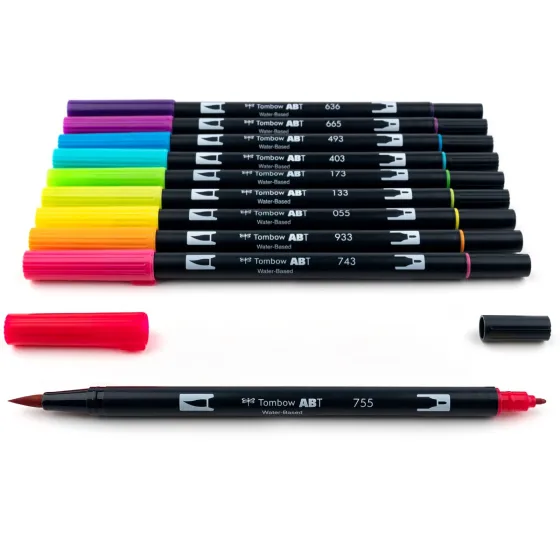

The pens I use are Tombow Dual Brush Pen Art Markers.
These ones here.
This arrangement is called a hyperboloid.
Each pen hole depth is 101.5mm ( 4 inches ).
Each pen hole width is 10mm ( 0.4 inches )
The internal cup depth (without pens) is 87.25mm ( 3.43 inches )
The internal cup width is 80mm ( 3.15 inches )
Overall, this thing (without pens) is about 185mm Wide and 93mm Tall ( 7.28 inches Wide and 3.66 inches Tall )
The print job will take approximately 262.57g of filament. ( when sliced with a .2mm layer height, 15% Gyroid Infill, & 2 walls )
And approximately 9hours 20 minutes.

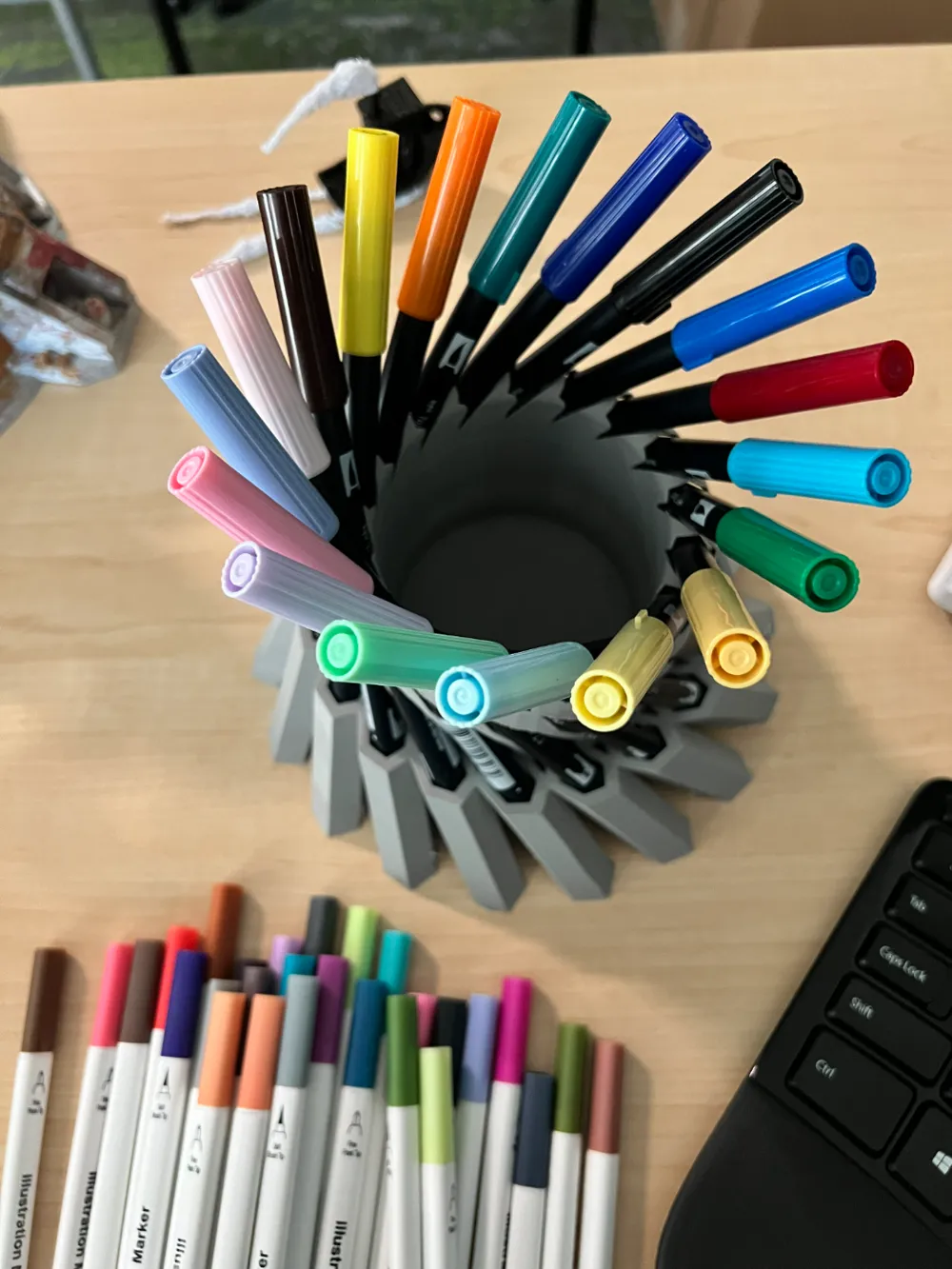

When I printed mine, I printed with 0.2mm layer height and 5% Gyroid infill, and 4 walls.
(Printed awhile ago on my original Ender 3.)
Then I drilled a hole in the bottom, poured a bunch of BB's in, Then filled with epoxy.
This made it nice and heavy.
No moving around on my desk.
