Hello. I present to you a device that facilitates the assembly of doors in hanging and standing cabinets.

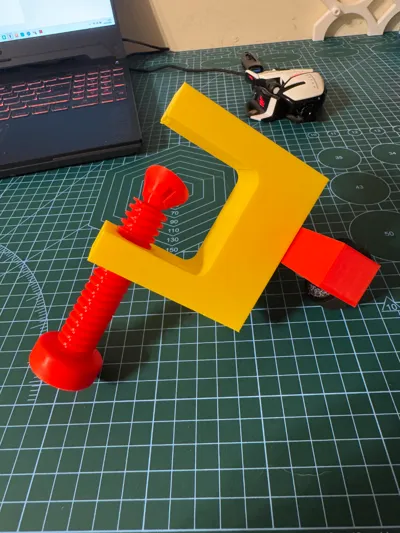

The device has a vice that allows you to attach them to boards even 40mm thick.

The support against which the door rests for easy and even assembly (relative to other doors) is also fully adjustable and thanks to the use of trapezoidal assembly, a 90* angle is always maintained.

Of course, there is the possibility of combining sets.

The whole, apart from the 4th board, does not require explanation.

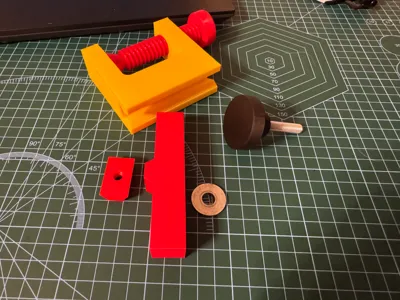

As for the 4th board, it contains a knob with a steel screw with a hexagonal head. M8x45
On layer 270 there is a pause during which we gently insert the screw so as not to tear the whole thing off the board. Then we resume printing and it's done :) the element is visible in one of the photos.

The colors are of course at your discretion :P

have fun printing
