Packout Drawer insert for M12 Fuel Jigsaw by Milwaukee Dave

Milwaukee Dave

Tools>Other Tools

Print Profile(1)

All

P1P

P1S

X1 Carbon

X1E

0.24mm layer, 3 walls, 15% infill

Designer

16.5 h

3 plates

5.0(2)

Open in Bambu Studio

Boost

152

Released

Description

M12 Fuel Jigsaw insert for Packout drawers

Insert will fit either 2 or 3 drawer packout system and there are designs for both left or right side

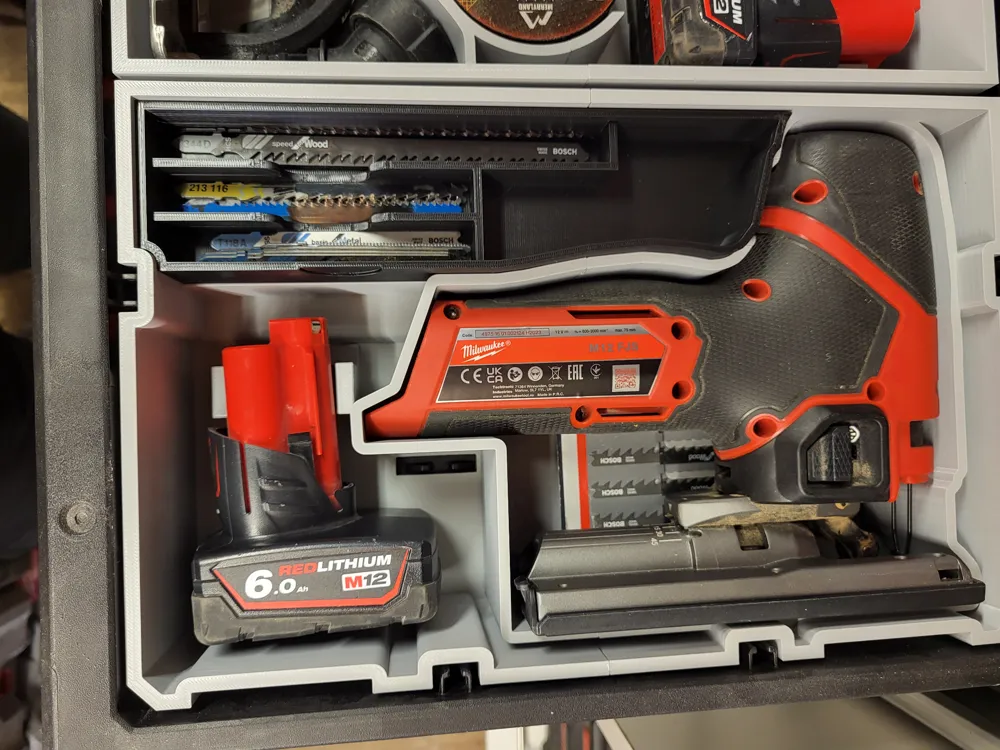

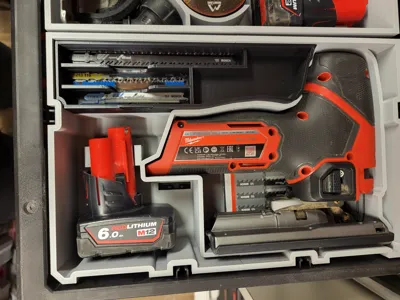

there is storage space for dust extractor tube, clear blade guard and small storage below the blade storage, the top compartment is for blades and will fit blades upto 152mm long, the top is just a basic lid that is held in place by friction alone and is just to stop blades bouncing out while in transport it does not click into place for a secure closure (I may try design something later), there is space for batteries, In the photo I have added my M12 6Ah battery support which is available as a seperate download

There is space below the handle for ease of removal and can also store some small packs of blades if required

Boost Me (for free)

If you like this or any of my designs, or anyone else on Makerworld please remember to boost your designers to help us all keep designing for you
Thank you

m12 jigsaw

jigsaw

packout drawer

milwaukee packout milwaukee jigsaw

packout insert
