Description

The new-generation USB cable winder is specifically designed for super-fast charging TPE data cables with a diameter of 5mm or less. Featuring dual rollers at both ends combined with an open structure, it significantly reduces resistance during cable coiling to protect your data cable. The reel incorporates a spring-loaded pawl mechanism that engages with gear teeth on the base cover, producing a distinctive clicking sound with each rotation while preventing accidental loosening of the spool.

Simple to assemble and easy to print, requiring only 25g of filament and 1-hour printing.

For enhanced tactile feedback in the spring-loaded pawl mechanism and extended service life, PETG material is highly recommended for printing the winder components.

Assembly steps:

Comment & Rating (314)

@Robert_M

Great design - works smoothly - especially unwinding. Did anyone tried up scaling this for thicker and bigger cables ? Thanks to designer for sharing.

@NickN

Boosted

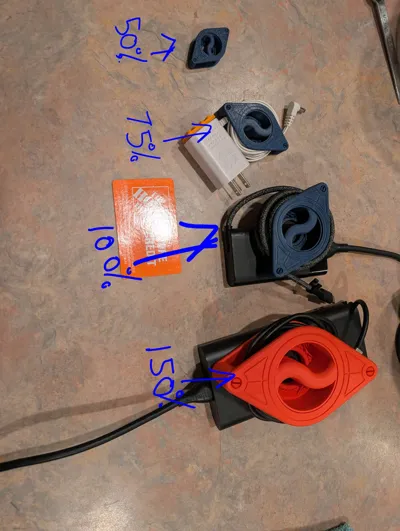

I scaled up to 125% and 150%. Both worked great.

@Robert_M

Thank you for the feedback. I will definitely try it out for larger cables.

@macallen

Boosted

Perfect! It would be even better if it could be printed in parts, allowing for customized colors

The designer has replied

Show original

@Joywent

Thank you very much for your kind words and support! Multi-color printing of the AMS parts is achievable, and I will upload the print profiles shortly. Thank you for your suggestion!

Show original

@printerOfThat

if you click print and go to 'parts to print 7/7' click that and it will give you options to take out pieces that way you can print one color and then go back and print the other pieces the other color.

@macallen

Boosted

Replying to @printerOfThat :

Perfect Thank you🙏

Show original

@regginight

Perfect 👏👍

Show original

@imkertools

Boosted

Print Profile

AMS two-color, print by object

Super

@Joywent

Thank you for the great review and the boost!

@CoinMcDuck

Perfect, superbly modeled. The clicking sounds when rewinding are fantastic! Many thanks, and I eagerly await your next creations.

The designer has replied

@Joywent

Thank you for the great review！

@Createall

Print Profile

AMS two-color, print by object

Extremely easy to print, fulfills its purpose completely

Show original

@Joywent

Thank you for the great review!

@user_127497599

Boosted

Perfect, superbly modeled. The clicking sounds when rewinding are fantastic! Many thanks, and I eagerly await your next creations.

The designer has replied

Show original

@Joywent

Thank you for the great review and the boost!

@Bieri

Boosted

Fantastic piece! I'll soon make one at 150 percent to accommodate longer cables

The designer has replied

Show original

@Joywent

Thank you for your kind words and support! Feel free to share any feedback regarding larger prints here, thank you!

Show original

@user_3329946035

Print Profile

0.2mm layer, 2 walls, 15% infill

love this print

@Joywent

Thank you for the great review!

@user_234404291

Printed with Sunlu Silk PLA. Works great!
