Table or Counter garbage bag holder by VwFix

VwFix

Household>Other House Models

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

4.4 h

2 plates

4.3(4)

Open in Bambu Studio

Boost

173

136

Released

Description

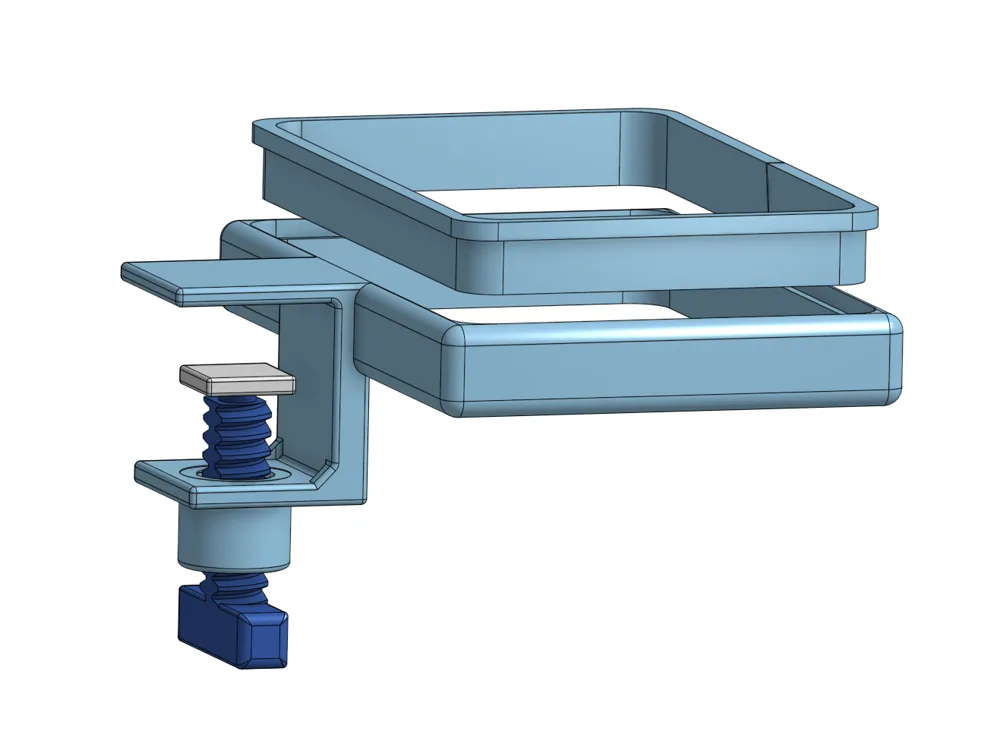

Keep your space tidy with this handy, clamp-on garbage bag holder! Ideal for small bathroom bags or grocery bags, it attaches easily to surfaces up to 45mm thick.

Now also available with a larger clamp (up to 65mm) for greater versatility.

Update: Made small modification to add small gussets to the bottom of the clamp to minimize the bending when tightening the bolt

Update 2: Added thickness and infill modifier to the clamp area to make it a bit stronger

If you like this print check out my other designs!

Boost Me (for free)

If you find this model useful, consider boosting me! Your support will help me save for an AMS to experiment with color and multi-material designs.

Comment & Rating (17)

@Dr_V3NOM

Print Profile

0.2mm layer, 2 walls, 15% infill

Sorry for the low rating, but without glue it was not possible to use it normally. The part that remains on the surface of the table when clamped came off. I pulled the screw to better secure the structure on the corner of the table and broke it. There is not enough thickness or corner as made on the opposite part.

@vwfix

Thanks for the photo and the feedback, I will look into this and see if I can strengthen that junction.

@Dr_V3NOM

Replying to @vwfix :

I understand that there are layers and breakage by layers, and not by thread strength. It seems to me that either a corner needs to be made or the width of this place needs to be increased. A modifier with increased filling can also help.

@vwfix

Replying to @Dr_V3NOM :

Yeah I think I am going to bump the width a bit and add a infill modifier. I printed 3 of this so far and have not ran into the issue. But there are a lot of factors such as filament and clamping strength, but better be safe than sorry

@wambamamba

The first plate, under-hang didn't have any support and I missed it (on the 26th layer) and the I ended up printing in air. Is there supposed to be support generated. I do see the modification by objects in the slicer. But on "tree" it doesn't generate support for the under hang. To check, I switched to normal, and it does. Am I doing something wrong or what's happening? But somehow the part did come out with some loose strings and not spaghettifying. I will see if I can file away the strings. Edit: There's also something happening with the thread entry, some area are printing in air. (Layer 272)

(Edited)

The designer has replied

@vwfix

Hmm sorry did not catch that with my last update of the file, just uploaded a new version with supports fixed

@wambamamba

Replying to @vwfix :

No worries. I probably won't do another print, as this one is alright.

@jbspaminator

I wish I had seen this last night, I had the exact same issue of no supports on the same area. Will have to reprint with a manual slice

(Edited)

@Nunya_Bidness

Nice! Would it be possible to get a version with a larger clamp size? My workbench is 2.5" (64mm) thick...

The designer has replied

@vwfix

Sure I just uploaded a new STL file called "Basket taller clamp 70mm.stl" should do the trick

@zaqllc

Print Profile

0.2mm layer, 2 walls, 15% infill

@vwfix

Any specific issues with the profile?

@BastlMike

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_1587669297

Print Profile

0.2mm layer, 2 walls, 15% infill
