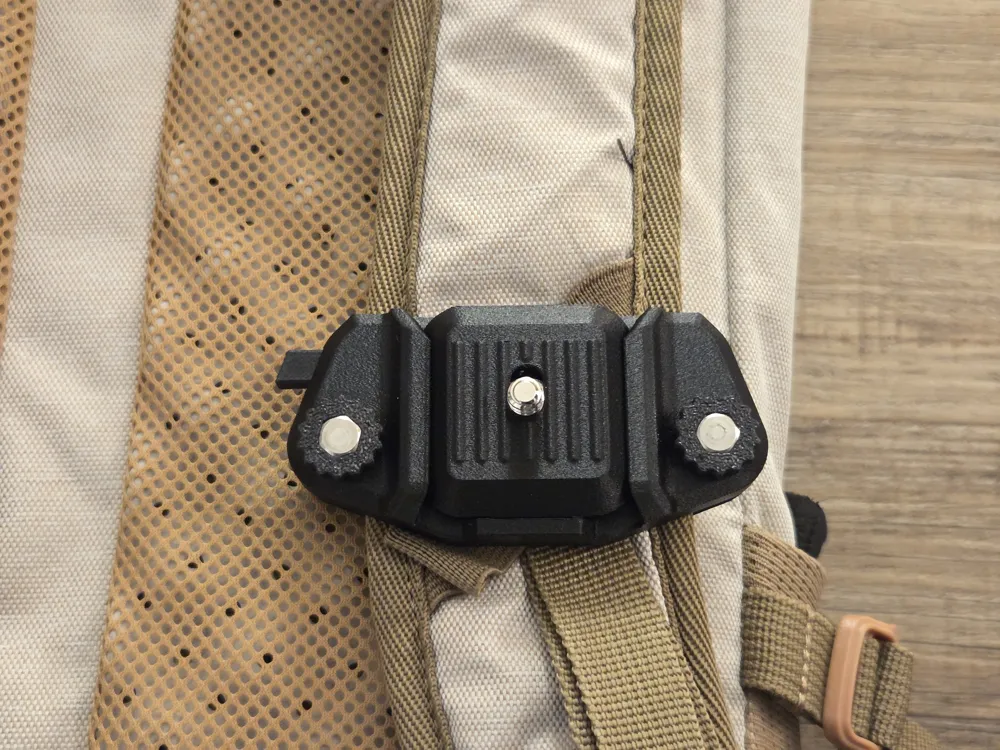

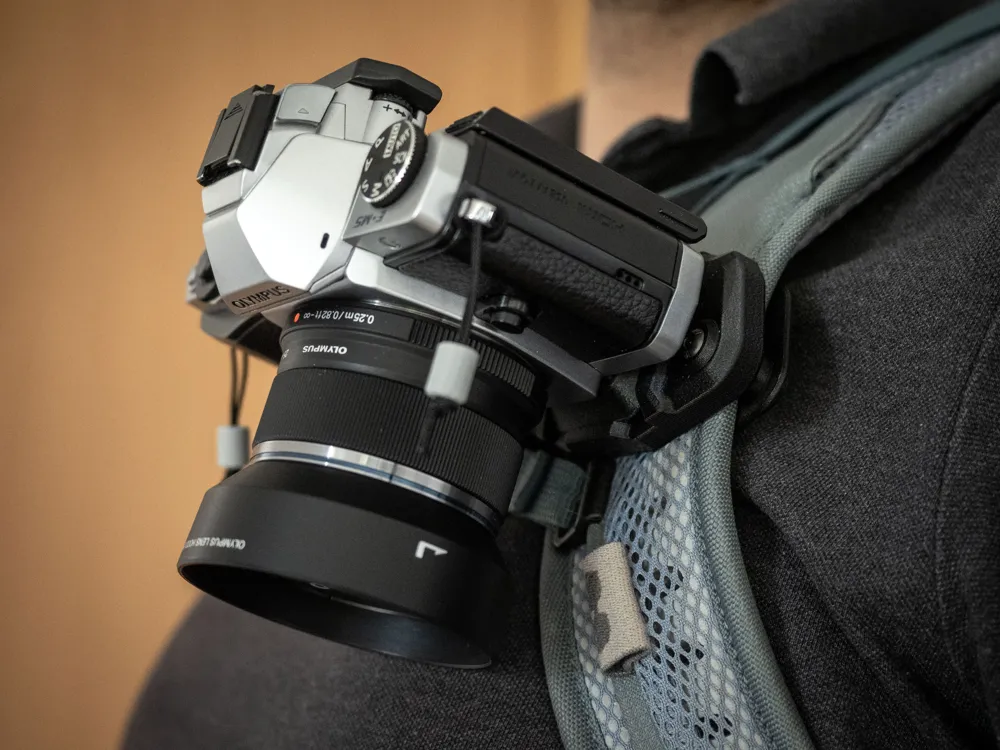

A clip to carry the camera on the backpack strap. This clip is compatible to the arca swiss style baseplate of the peak design capture clip.
Required hardware
- 2x M4x16mm Hex Bolts
- 2x M4 Threaded Inserts 8,1mm length
- 1x M2.5x4mm Bolt
- 1x Ballpoint Pen Spring ca. 25mm
Instructions

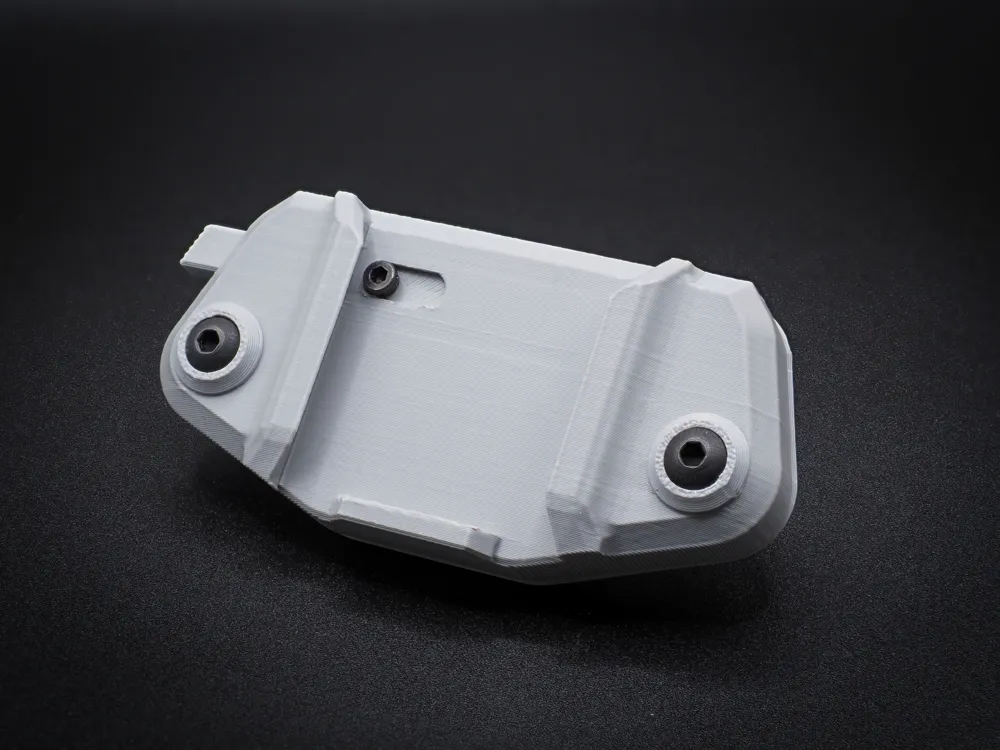

- Insert the Threaded Inserts from the backside of the backplate.
- Put the ballpoint pen spring in the hole, insert the pin and screw in the M2.5 bolt.

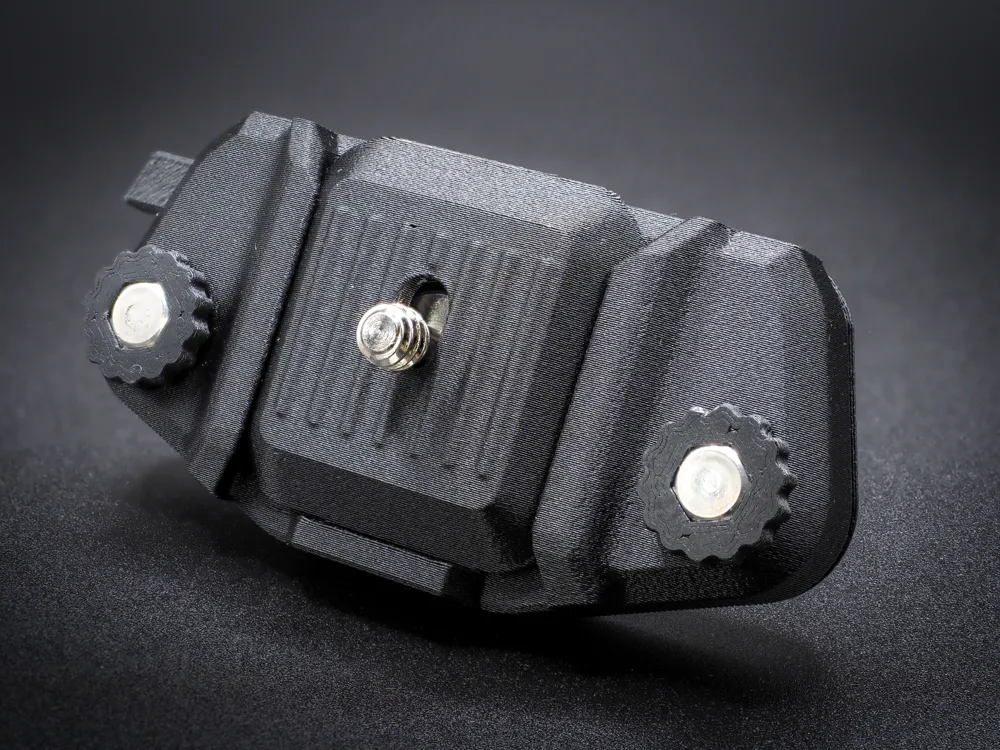

- Put the M4x16 bolts into the small grip pieces. The fit on them is very tight, i use my bench vise to push them in.
- Alternative: For a more permanent setup you can use the spacers with a pan head bolt
