Light Switch Lock / Cover - Mark II (Version 2) by Rafael

Rafael

Household>Other House Models

IP Report

Print Profile(3)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

Light Lock Mark II - 0.12mm layer, 4 walls, 30% infill

Designer

29 min

1 plate

4.4(7)

(Old version) 0.16mm layer, 3 walls, 20% infill

Designer

28 min

1 plate

4.6(16)

0.12mm layer, 4 walls, 30% infill - wider version (7mm)

Designer

25 min

1 plate

Open in Bambu Studio

Boost

201

472

340

272

Released

Description

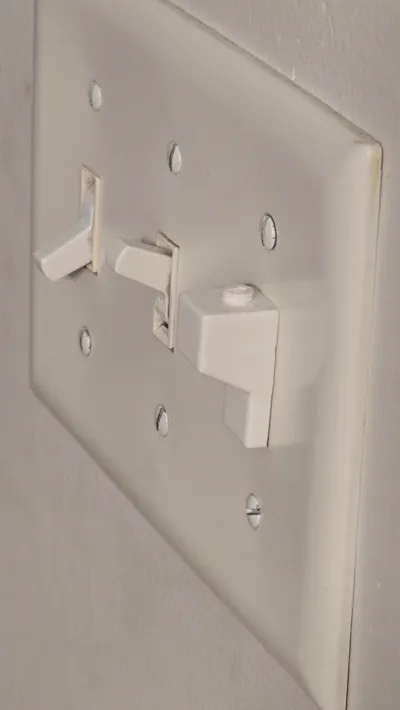

Based on the feedback of the original model (and because my 8-year-old son finally damaged my first lock), I'm uploading the version 2 of the lock. Changes:

Better fit to the switch lever. In my test, it even stays in place without the need for the screw.
Screw with closer tolerance to the hole, better fit.

As with the original version, the objective with this lock is to install it on any switch you want to keep ON or OFF, without messing with the screws of the switch cover.

Please ensure your plate is clean, washing with warm water and dish soap helps.
If possible, use a glue stick for the plastic screw (it is a small part)
Please remember this is PLA, avoid using too much force in the screw to prevent deformation.
