PTFE Tube Retainer Guide (AMS A1/A1 Mini) by Scero Guitars

Scero Guitars

3D Printer>3D Printer Accessories

IP Report

Print Profile(1)

All

A1 mini

H2D

0.2mm layer, 2 walls, 15% infill

32 min

2 plates

4.0(1)

Open in Bambu Studio

Boost

156

108

Released

Description

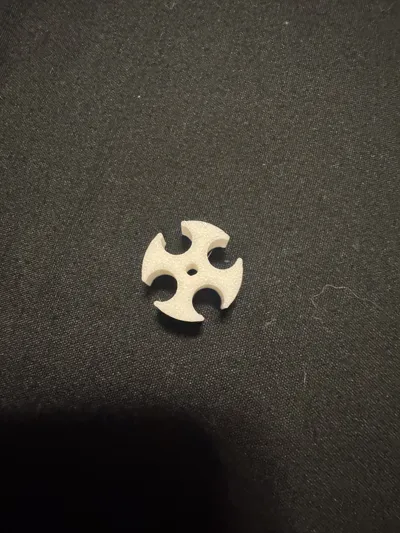

****PTFE TUBE RETAINER GUIDE***

I either am a typical dude, and am HORRIBLE at finding things…or, somehow this PTFE Tube Retainer Guide just was NOT on Maker World.

I wanted some more of these, to help guide my tubes from my AMS (since it is now mounted ABOVE my A1 Mini, and the tubes come downward now), but just could NOT find one just like the ones that comes with the A1's.

Pretty qquick reverse engineering, and BAM! PTFE Retainer Guides!

Feel free to let me know if you like em, or what I could do better!

Comment & Rating (31)

@user_3502807007

The print profile is no longer public

great!

@SceroLoucious

Appreciate that!

@Cinghiuser

The print profile is no longer public

No problem, a simple, quick, and useful print. Printed with generic PLA settings.

Show original

@SceroLoucious

I'm glad you liked it, thank you

Show original

@brad133

The print profile is no longer public

came out great

@iduckett

Print Profile

0.2mm layer, 2 walls, 15% infill

I like these things, they work to clip to the ptfe tubes - but do slide around a bit. Could use a zip tie or something (and may do that) but for now they just follow the path of least resistance. Anyway, thank you, I can make this work!

@SorinMunteanu

The print profile is no longer public

@SceroLoucious

Appreciate the rating! Did it work well for you?

@user_1195180347

The print profile is no longer public

@SceroLoucious

Let me know if it works well for you!

@user_562255152

Boosted

Thanks for this! I replaced some ptfe tubes with longer tubes and needed more cable guides. Found this (I think it's the only one out there), decreased it by 10% for a more snug fit and they're awesome!!

The designer has replied

@SceroLoucious

Well I am glad you like it, and truly appreciate the feedback! So you are thing, the design needs to be shrunken down about 10% to make the tubes fit tighter in?
